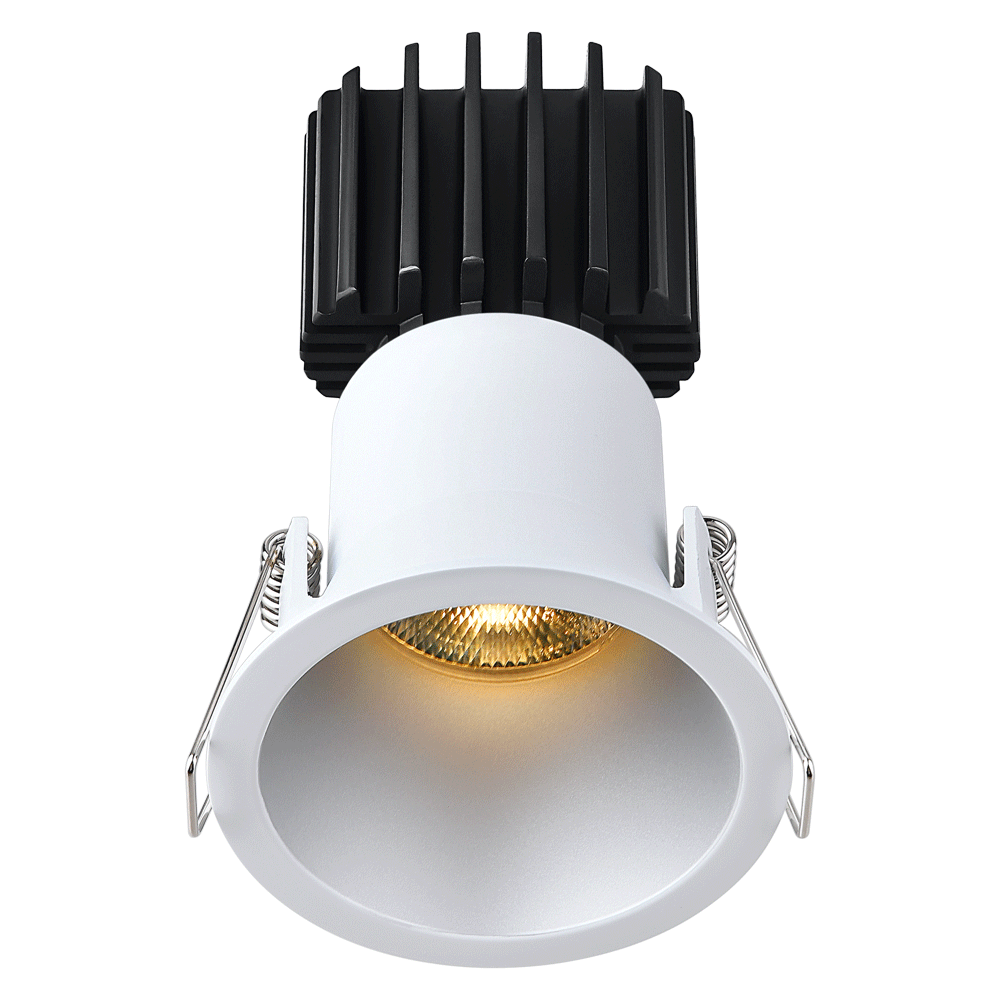

Tangra 3" Fixed Round Deep Regressed Thin Alzak Trim Lens White 36° 5CCT CRI95 with 120-347V 0-10V Dimmable Commercial Driver

Tangra 3" Fixed Round Deep Regressed Thin Alzak Trim Lens White 36° 5CCT CRI95 with 120-347V 0-10V Dimmable Commercial Driver

Brand: Lotus LED Lights
Item number: L3F-RDT-AZ-LW36-5C95
Trim Type: Thin Alzak Trim
Driver: 120-347V 0-10V Dimmable Commercial
Bulb Color: CCT Switchable
Lens/Glass Color: Lens White
CRI: 95
Beam Angle: 36 Degree

See More Spec

$110.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-RDT-AZ-LW36-5C95

The Tangra 3" Fixed Round Deep Regressed recessed downlight is engineered for demanding commercial environments requiring broad voltage compatibility and precise dimming control. Powered by a wide-range 120–347V commercial driver with 0–10V dimming, it delivers reliable performance across diverse electrical systems while allowing smooth, consistent light adjustment. The deep regressed design minimizes glare and provides controlled, focused illumination ideal for offices, retail, hospitality, and institutional applications. Featuring a compact round trim and clean ceiling integration, Tangra offers a professional-grade lighting solution designed to meet modern commercial specifications.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-RDT-AZ-LW36-5C95
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Lens White

Light Output & Performance

Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 36 Degree
Trim Type Thin Alzak Trim
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Minimal Glare - Near-Trimless Look
Color Templerature 2700/3000/3500/4000/5000 Kelvin

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120-347V 0-10V Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Round Deep Regressed Thin Alzak Trim Lens White 36° 5CCT CRI95 with 120-347V 0-10V Dimmable Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
