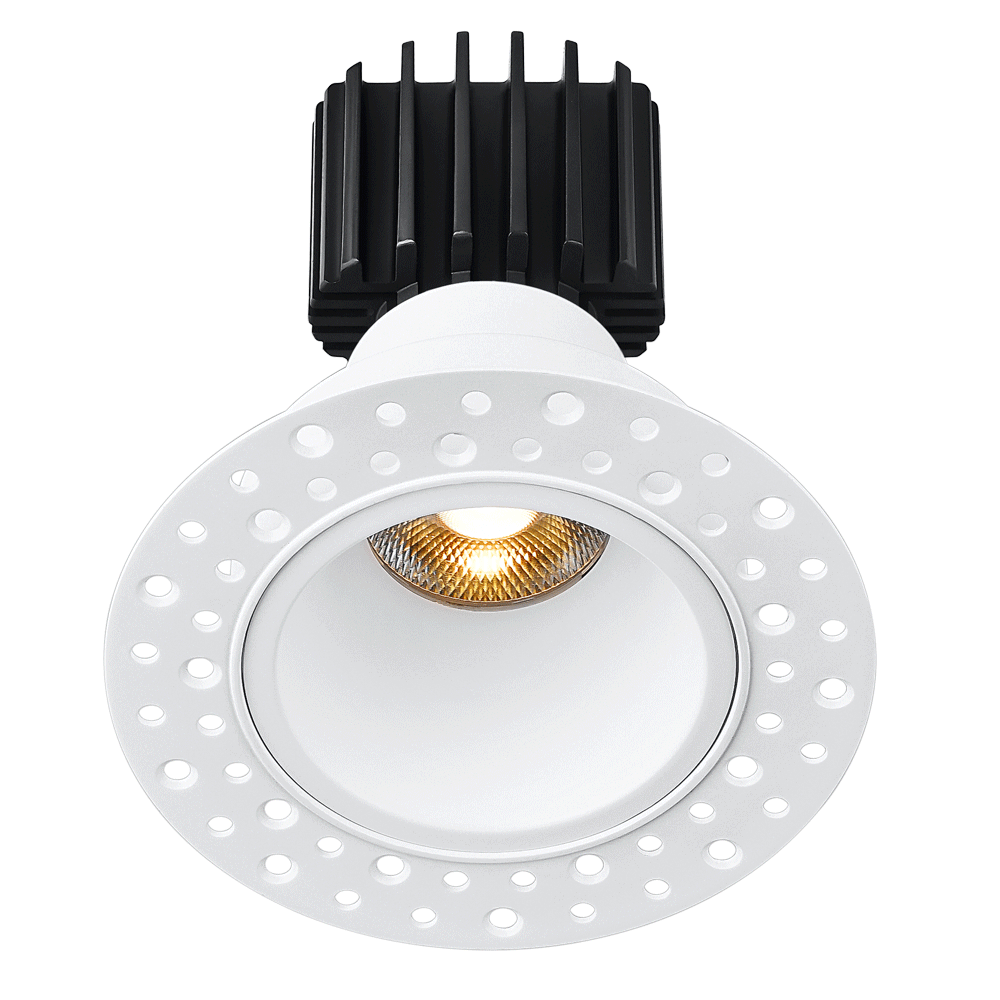

Tangra 3" Fixed Round Deep Regressed Invisible White Trim Reflector Semi-frosted glass 36° 30K CRI98 with 120V Commercial Driver

Tangra 3" Fixed Round Deep Regressed Invisible White Trim Reflector Semi-frosted glass 36° 30K CRI98 with 120V Commercial Driver

Brand: Lotus LED Lights
Item number: L3F-RDI-WH-RS36-3K98
Trim Type: Invisible White Trim
Driver: 120V Triac Dimmable Commercial
Color Temperature: 3000 Kelvin
Lens/Glass Color: Semi-frosted glass
CRI: 98
Beam Angle: 36 Degree

See More Spec

$124.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-RDI-WH-RS36-3K98

The Tangra 3" Fixed Round Deep Regressed Downlight is purpose-built for commercial installations requiring direct 120V line-voltage operation. Its deep regressed aperture provides enhanced glare control and visual comfort, delivering controlled, high-quality illumination for offices, retail, hospitality, and architectural environments. Equipped with a commercial-rated 120V driver, it offers stable output, efficient performance, and dependable long-term operation in professional lighting systems.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-RDI-WH-RS36-3K98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Semi-frosted glass

Light Output & Performance

Color Temperature 3000 Kelvin
Lumen up to 1600 lm at 3000K CRI95
CRI 98
Beam Angle 36 Degree
Trim Type Invisible White Trim
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Minimal Glare - Trimless Installation

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120V Triac Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Round Deep Regressed Invisible White Trim Reflector Semi-frosted glass 36° 30K CRI98 with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
