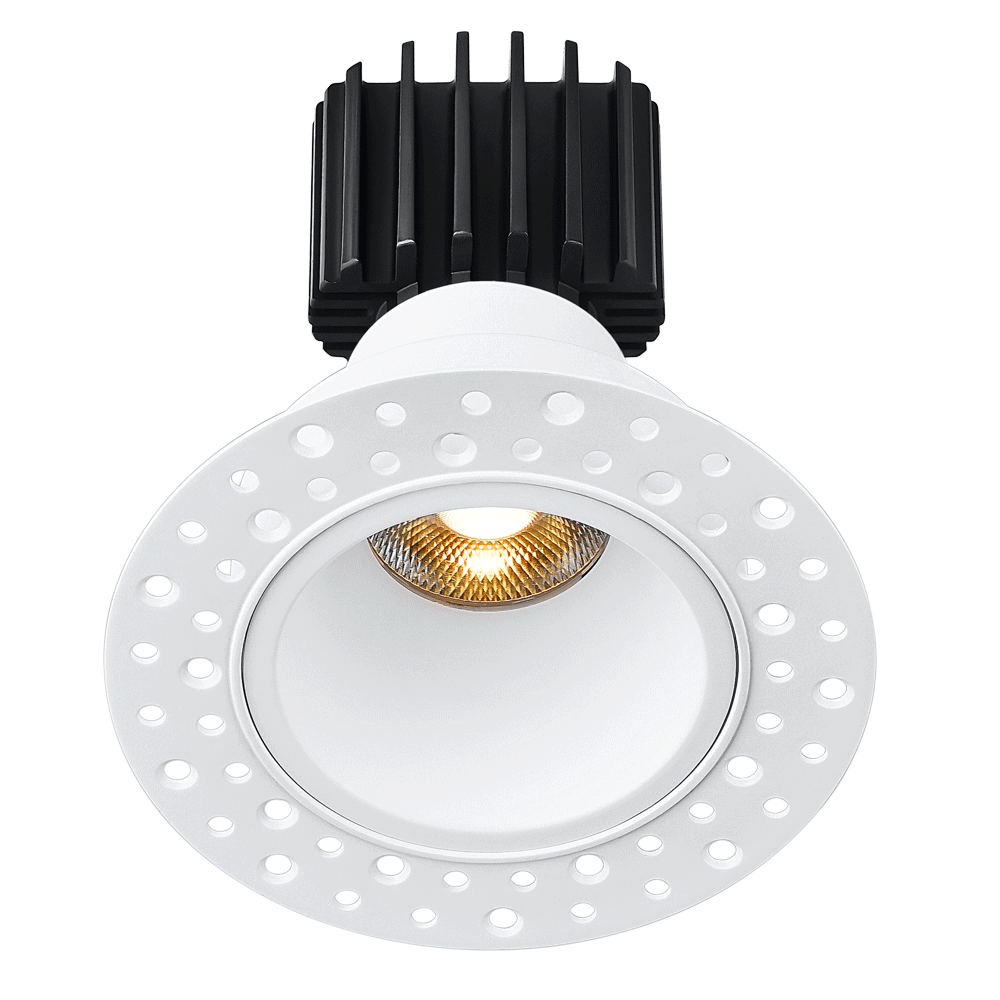

Tangra 3" Fixed Round Deep Regressed Invisible White Trim Reflector Semi-frosted glass 20° 4CCT+DTW 35K to 27K CRI90 with 120-347V 0-10V Residential Driver

Brand: Lotus LED Lights
Item number: L3F-RDI-WH-RS20-4C90
Trim Type: Invisible White Trim
Driver: 120-347V 0-10V Dimmable Residential
Color Temperature: 3500 Kelvin to 2700 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Semi-frosted glass
CRI: 90

See More Spec

$124.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-RDI-WH-RS20-4C90

Tangra 3" Fixed Round Deep Regressed Downlight – 120–347V, 0–10V Residential Driver. Designed specifically for residential use, the Tangra 3" Fixed Round Deep Regressed Downlight provides comfortable, glare-controlled illumination for everyday living. The deep regressed aperture softens light output, making it ideal for living rooms, kitchens, bedrooms, hallways, and other in-home spaces where visual comfort matters.This downlight features a wide 120–347V input and a smooth 0–10V dimmable residential driver, allowing easy adjustment from bright task lighting to warm ambient light. Its fixed round trim delivers a clean, low-profile look that blends seamlessly into residential ceilings, complementing both modern and classic home interiors.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-RDI-WH-RS20-4C90
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Semi-frosted glass

Light Output & Performance

Color Temperature 3500 Kelvin to 2700 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 90
Beam Angle 20 Degree
Trim Type Invisible White Trim
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Minimal Glare - Trimless Installation

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120-347V 0-10V Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Round Deep Regressed Invisible White Trim Reflector Semi-frosted glass 20° 4CCT+DTW 35K to 27K CRI90 with 120-347V 0-10V Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
