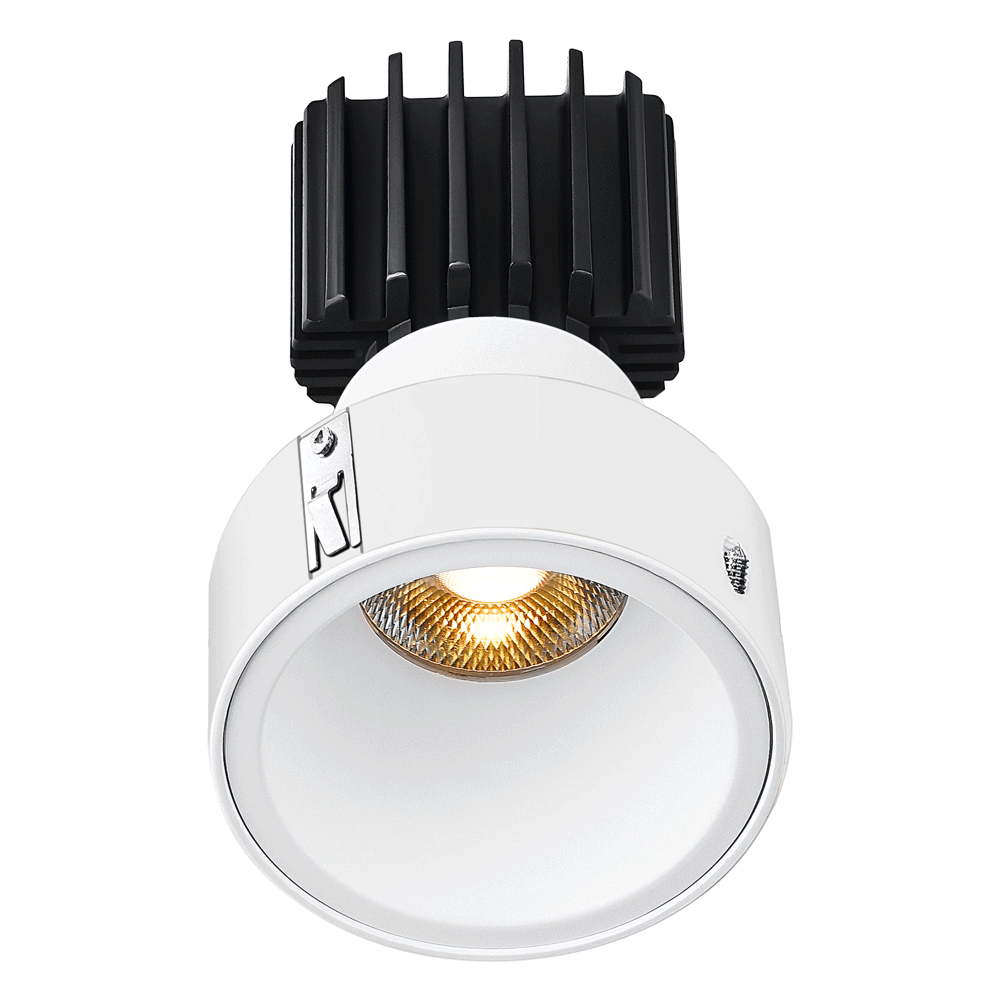

Tangra 3" Fixed Round Deep Regressed Invisible Flangeless White Trim Reflector Semi-frosted glass 20° 4CCT+DTW 35K to 27K CRI90 with 120-347V 0-10V Dimmable Residential Driver

Brand: Lotus LED Lights
Item number: L3F-RDF-WH-RS20-4C90
Trim Type: Invisible Flangeless Black Trim
Driver: 120-347V 0-10V Dimmable Residential
Color Temperature: 3500 Kelvin to 2700 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Lens Black
CRI: 90

See More Spec

$131.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-RDF-WH-RS20-4C90

Featuring a 120–347V, 0–10V dimmable residential driver, the Tangra fixed downlight offers smooth, responsive dimming and reliable performance across a variety of residential and multi-family electrical systems. The consistent, comfortable light output supports everyday living, while the deeply regressed light source helps reduce glare and enhance visual comfort. Ideal for living rooms, kitchens, hallways, and bedrooms, Tangra is a versatile solution for spaces where subtle design, lighting control, and a relaxed residential atmosphere matter most.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-RDF-WH-RS20-4C90
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Lens Black

Light Output & Performance

Color Temperature 3500 Kelvin to 2700 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 90
Beam Angle 20 Degree
Trim Type Invisible Flangeless Black Trim
Projected Life 70% Light Output at 50000 Hours
Applications Millwork & Wood Ceiling - Minimal Glare

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120-347V 0-10V Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Round Deep Regressed Invisible Flangeless White Trim Reflector Semi-frosted glass 20° 4CCT+DTW 35K to 27K CRI90 with 120-347V 0-10V Dimmable Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
