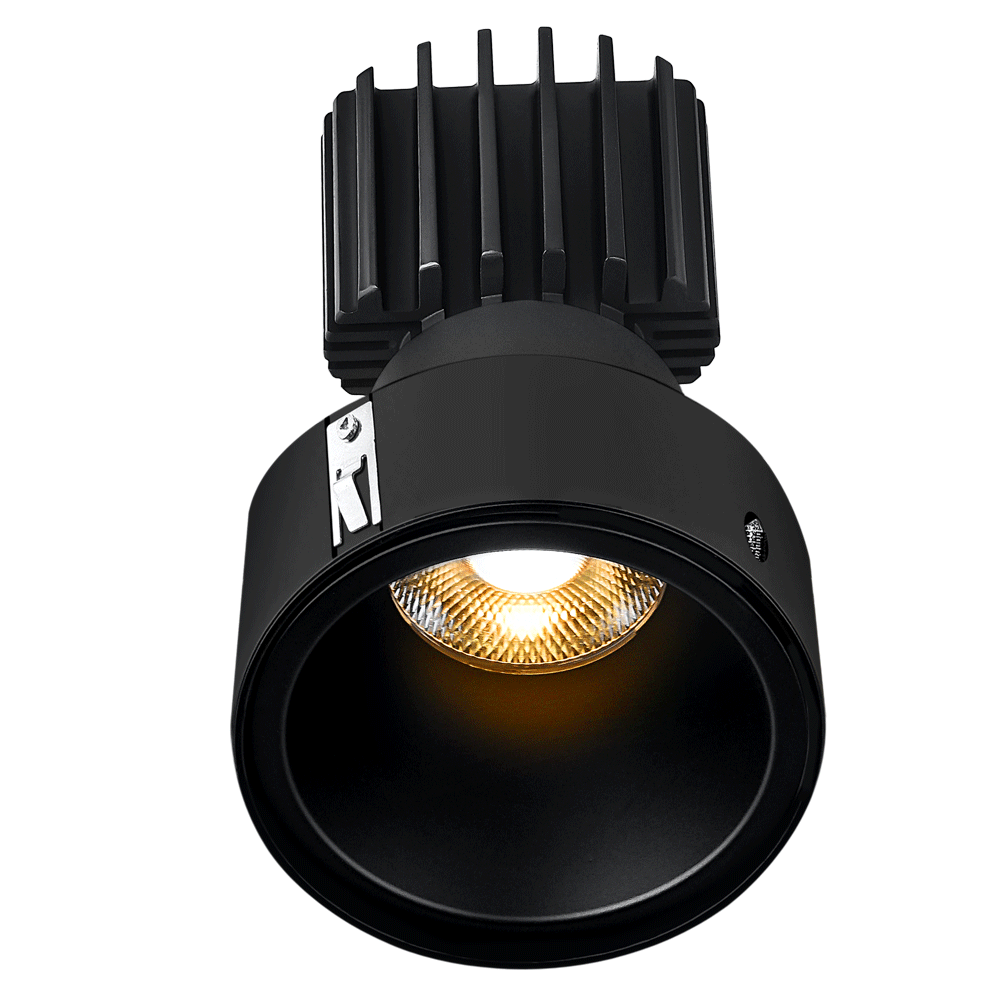

Tangra 3" Fixed Round Deep Regressed Invisible Flangeless Black Trim Reflector Semi-frosted glass 20° 5CCT CRI98 with 120V Residential Driver

Tangra 3" Fixed Round Deep Regressed Invisible Flangeless Black Trim Reflector Semi-frosted glass 20° 5CCT CRI98 with 120V Residential Driver

Brand: Lotus LED Lights
Item number: L3F-RDF-BK-RS20-5C98
Trim Type: Invisible Flangeless Black Trim
Driver: 120V Triac Dimmable Residential
Color Temperature: 2700/3000/3500/4000/5000 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Lens Black
CRI: 98

See More Spec

$131.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-RDF-BK-RS20-5C98

Powered by a reliable 120V residential driver, the Tangra fixed downlight provides soft, consistent illumination ideal for everyday living. The deeply regressed light source helps reduce glare and enhance visual comfort, making it well suited for living rooms, kitchens, hallways, and bedrooms. An excellent choice for high-end residences and multi-family homes where subtle design, comfort, and a refined finish are key.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-RDF-BK-RS20-5C98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Lens Black

Light Output & Performance

Color Temperature 2700/3000/3500/4000/5000 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 98
Beam Angle 20 Degree
Trim Type Invisible Flangeless Black Trim
Projected Life 70% Light Output at 50000 Hours
Applications Millwork & Wood Ceiling - Minimal Glare

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120V Triac Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Round Deep Regressed Invisible Flangeless Black Trim Reflector Semi-frosted glass 20° 5CCT CRI98 with 120V Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
