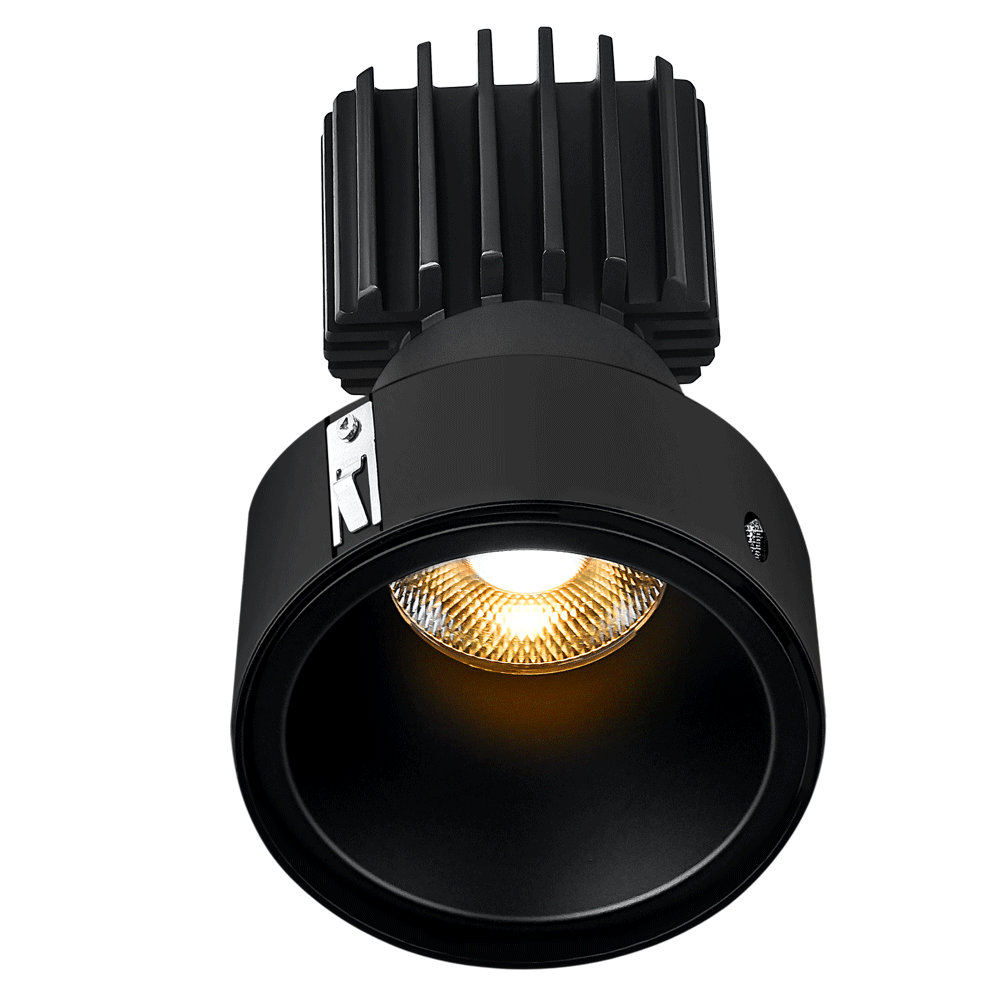

Tangra 3" Fixed Round Deep Regressed Invisible Flangeless Black Trim Lens Black 50° DTW 30K to 18K CRI95 with 120-347V 0-10V Dimmable Commercial Driver

Brand: Lotus LED Lights
Item number: L3F-RDF-BK-LB50-1895
Trim Type: Invisible Flangeless Black Trim
Driver: 120-347V 0-10V Dimmable Commercial
Color Temperature: 3000 Kelvin to 1800 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Lens Black
CRI: 95

See More Spec

$131.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-RDF-BK-LB50-1895

Powered by a high-performance 120–347V commercial driver, this downlight offers exceptional versatility across a wide range of commercial installations. 0–10V dimming ensures smooth, flicker-free control and compatibility with standard lighting control systems. The fixed round aperture provides precise, consistent light distribution, making it ideal for high-end retail, hospitality, corporate, and architectural applications where clean design and performance matter.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-RDF-BK-LB50-1895
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Lens Black

Light Output & Performance

Color Temperature 3000 Kelvin to 1800 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 50 Degree
Trim Type Invisible Flangeless Black Trim
Projected Life 70% Light Output at 50000 Hours
Applications Millwork & Wood Ceiling - Minimal Glare

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120-347V 0-10V Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Round Deep Regressed Invisible Flangeless Black Trim Lens Black 50° DTW 30K to 18K CRI95 with 120-347V 0-10V Dimmable Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
