Satco S9166 1.2W S11 LED Sign Bulb – Ceramic Yellow, E26, 120V

Satco S9166 1.2W S11 LED Sign Bulb – Ceramic Yellow, E26, 120V

Brand: Satco
Item number: S9166
UPC: 045923091667
Bulb Type: S11
Base Code: E26
Base Type: Medium
Product Type: LED
Incandescent Equivalent: 10 Watt

See More Spec

$6.93

BUY BULK & SAVE!

Model: S9166

The Satco S9166 is a compact 1.2-watt S11 LED sign bulb with a ceramic yellow glass finish and E26 medium base. Designed for indoor and outdoor use, including wet locations, it offers a 25,000-hour rated life and a documented 10-watt incandescent equivalent.

Specifications

Model: S9166
Technology: LED
Wattage: 1.2W; incandescent equivalent: 10W
Voltage: 120V; current: 0.010A
Lamp shape: S11
Base: E26 medium
Material: Glass
Finish and lens: Ceramic yellow
Dimming: Non-dimmable
Beam angle: 360°
Rated life: 25,000 hours

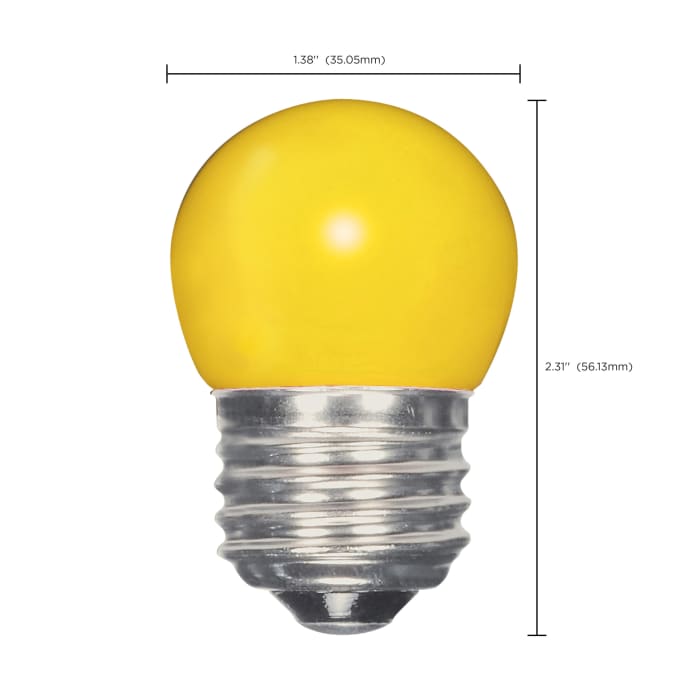

Maximum overall length: 2.31 inches
Maximum overall diameter: 1.38 inches
Operating temperature: -4°F to +113°F (-20°C to +45°C)

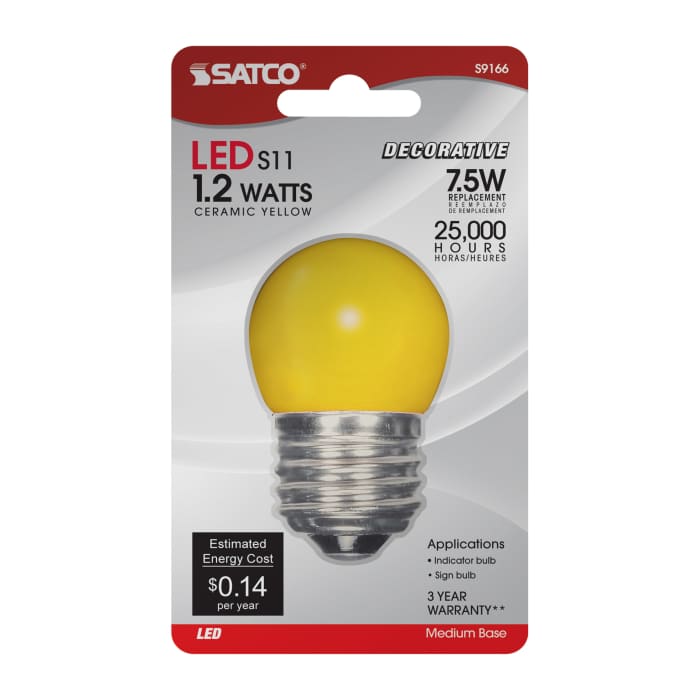

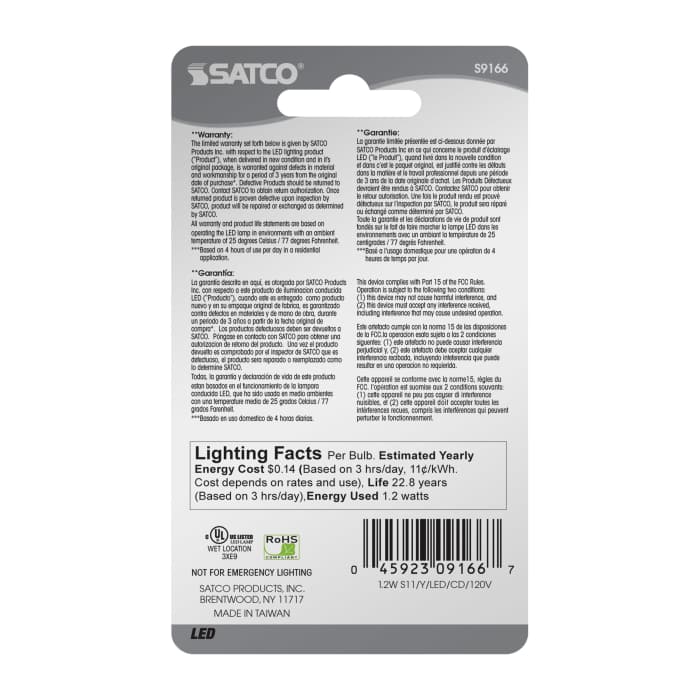

Packaging: One bulb, carded
UPC: 045923091667

Installation and use

For compatible 120V E26 medium-base sign applications. Suitable for indoor and outdoor use with a wet-location rating. Universal operating position. Non-dimmable, not for use with dimmers.

Compliance and warranty

The manufacturer documents cULus Certified and cULus Listed safety designations, FCC compliance and RoHS compliance. Manufacturer warranty: 5 years.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Satco
Item number S9166
UPC 045923091667
Product Type LED
Warranty 5 Year

Electrical

Voltage 120 Volt
Wattage 1.2 Watt
Incandescent Equivalent 10 Watt

Size & Weight / Finish

MOL 2.31 Inch
Color Ceramic Yellow
Diameter 1.38 Inch
Finish Ceramic Yellow

Light Output & Performance

Bulb Color Yellow
Beam Angle 360 degree
Average Hours 25000

Certification

Wet Location Yes
Safety Rating RoHS Compliant
Compliance FCC
cULus Listed Yes
RoHS Compliant Yes

Wireless Connection

Type

Bulb Type S11
Base Type Medium
Base Code E26

Included

Suitable

Warranty

Manufacturer Warranty Information

Satco S9166 1.2W S11 LED Sign Bulb – Ceramic Yellow, E26, 120V provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
