Satco S9163 1.2W S11 LED Sign Bulb, Ceramic Green, E26, 120V

Satco S9163 1.2W S11 LED Sign Bulb, Ceramic Green, E26, 120V

Brand: Satco
Item number: S9163
UPC: 045923091636
Bulb Type: S11
Base Code: E26
Base Type: Medium
Product Type: LED
Incandescent Equivalent: 10 Watt

See More Spec

$6.93

BUY BULK & SAVE!

Model: S9163

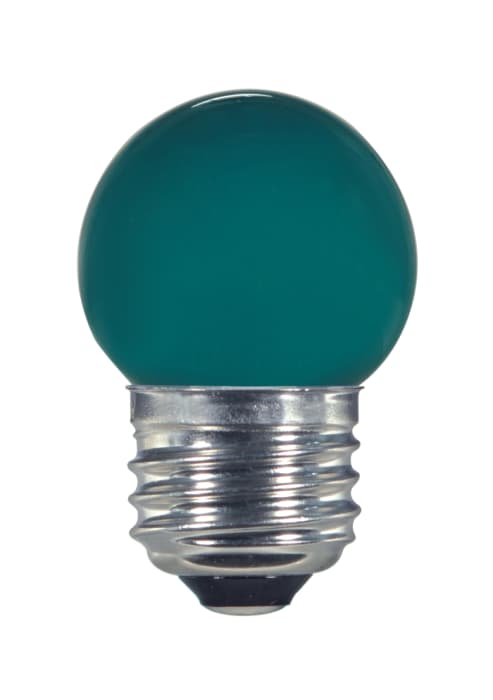

The Satco S9163 is a compact 1.2-watt S11 LED sign bulb with a ceramic-green glass finish and medium E26 base. It offers a 10-watt incandescent equivalent and a 25,000-hour rated life for indoor and outdoor sign applications, including wet locations.

Specifications

Model: S9163; UPC: 045923091636
Technology: LED; lamp shape: S11
Power: 1.2W; incandescent equivalent: 10W
Voltage: 120V; current: 0.010A
Base: E26 medium
Material: Glass; finish and lens: Ceramic Green
Non-dimmable; 360° beam angle
Rated life: 25,000 hours

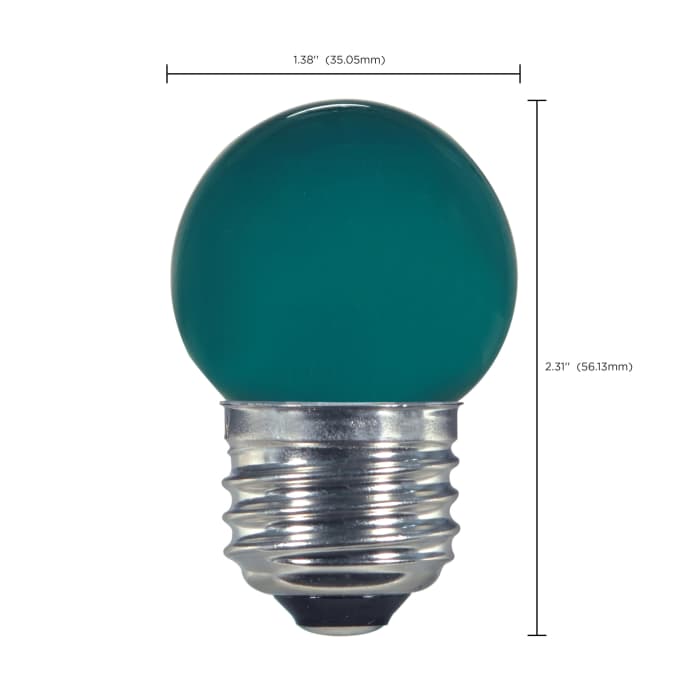

Maximum overall length: 2.31 inches; maximum overall diameter: 1.38 inches
Operating temperature: -4°F to +113°F (-20°C to +45°C)
Packaging: One bulb, carded

Installation and use

For compatible 120V E26 medium-base sign applications. Universal operating position. Rated for indoor, outdoor, and wet-location use. Non-dimmable, not for use with dimmers.

Compliance and warranty

The manufacturer documents cULus Certified and cULus Listed safety designations, FCC compliance, and RoHS compliance. Manufacturer warranty: 5 years.

Manufacturer status: Discontinued, as noted on the supplied specification sheet.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Satco
Item number S9163
UPC 045923091636
Product Type LED
Warranty 5 Year

Electrical

Voltage 120 Volt
Wattage 1.2 Watt
Incandescent Equivalent 10 Watt
Dimmable No

Size & Weight / Finish

MOL 2.31 Inch
Diameter 1.38 Inch
Finish Ceramic Green
Material Glass

Light Output & Performance

Average Hours 25000

Certification

Wet Location Yes
Safety Rating RoHS Compliant
Compliance FCC
cULus Listed Yes
RoHS Compliant Yes

Wireless Connection

Type

Bulb Type S11
Base Type Medium
Base Code E26

Included

Suitable

Warranty

Manufacturer Warranty Information

Satco S9163 1.2W S11 LED Sign Bulb, Ceramic Green, E26, 120V provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
