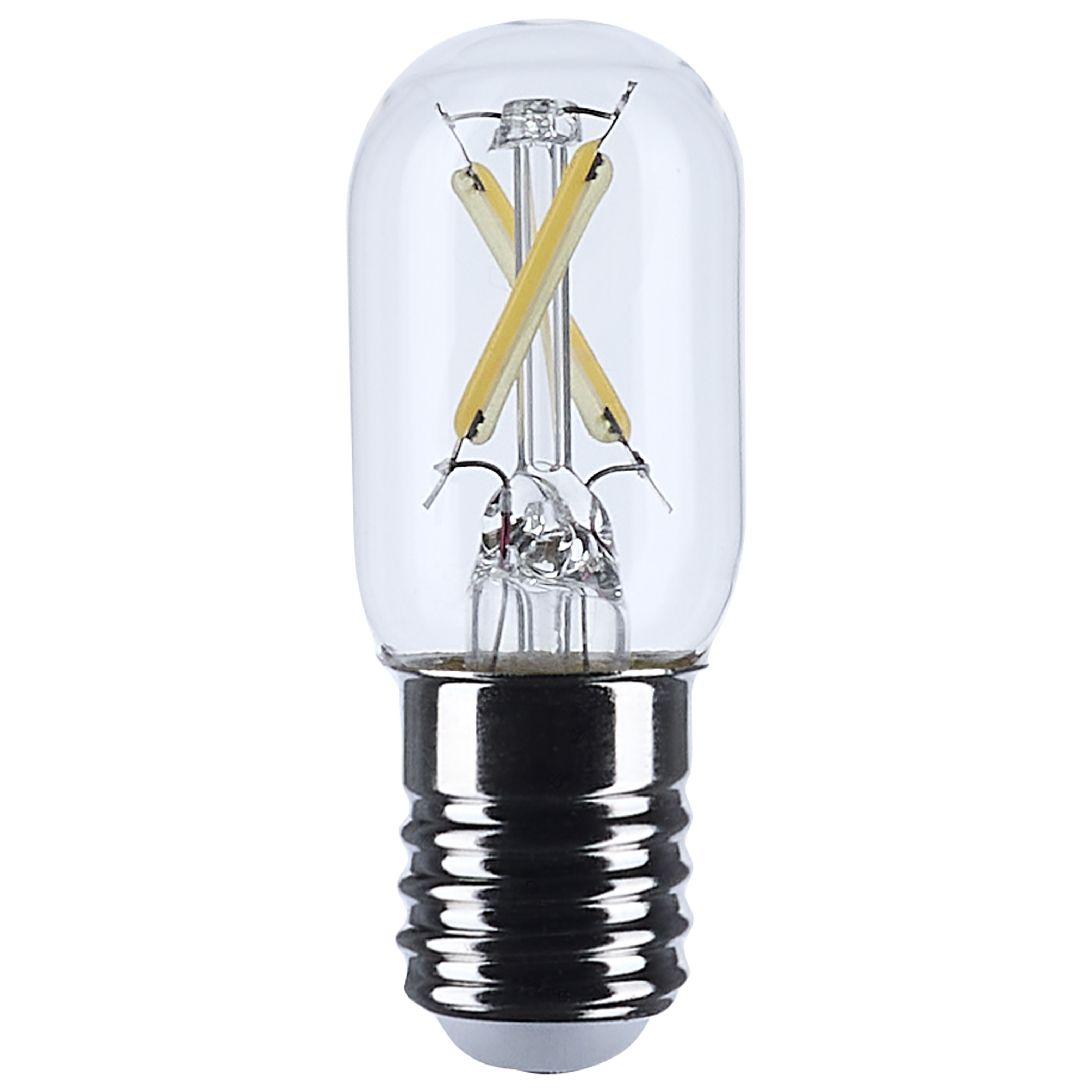

Satco S12520 3W T6.5 LED Filament Bulb, Clear, E17, 4000K
- Brand: Satco
- Item number: S12520
- UPC: 045923125201
- Bulb Type: T6.5
- Base Code: E17
- Base Type: Intermediate
- Product Type: LED
- Incandescent Equivalent: 25 Watt
Model: S12520
The Satco S12520 clear T6.5 LED filament bulb delivers cool white 4000K light with 90+ CRI and a wide 300-degree beam. This compact tubular bulb produces 200 lumens using 3 watts, with a documented 25W incandescent equivalent and an E17 intermediate base.
Specifications
- Model: S12520
- Technology: LED filament
- Lamp shape: T6.5 tubular
- Finish and material: clear glass
- Base: E17 intermediate
- Power: 3W; 120V; 60Hz; 0.032A
- Incandescent equivalent: 25W
- Light output: 200 lumens
- Color temperature: 4000K cool white; not selectable
- Color rendering: 90+ CRI
- Beam angle: 300 degrees
- Rated life: 15,000 hours
- Dimming: 120V phase-cut (TRIAC)
- Maximum overall length: 2.17 inches
- Maximum overall diameter: 0.87 inches
- Operating temperature: -4°F to 113°F (-20°C to 45°C)
- Power factor: 0.7
Installation and ratings
Requires an E17 intermediate socket and 120V supply. Use compatible phase-cut (TRIAC) equipment for dimming. Suitable for indoor and outdoor use, wet locations and enclosed fixtures. IP65 rated.
cULus Listed; FCC compliant; RoHS compliant; Title 20 compliant.
Warranty
Manufacturer warranty: 2 years.
Specification Document
Download Full Datasheet
- Brand Satco
- Item number S12520
- UPC 045923125201
- Product Type LED
- Warranty 2 Year
- Voltage 120 Volt
- Wattage 3 Watt
- Incandescent Equivalent 25 Watt
- Dimmable Yes
- MOL 2.17 Inch
- Diameter 0.87 Inch
- Finish Clear
- Color Temperature 4000 Kelvin
- Bulb Color Cool White
- Lumens 200
- CRI 90+
- Beam Angle 300 degree
- Average Hours 15000
- Rated for Fully Enclosed Fixtures Yes
- Wet Location Yes
- Compliance FCC
- cULus Listed Yes
- RoHS Compliant Yes
- Bulb Type T6.5
- Base Type Intermediate
- Base Code E17
Warranty
Manufacturer Warranty Information
Satco S12520 3W T6.5 LED Filament Bulb, Clear, E17, 4000K provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
