SATCO 65-941 - LED FULL CUTOFF WALL PACK

SATCO 65-941 - LED FULL CUTOFF WALL PACK

Brand: Satco
Item number: 65-941
UPC: 10045923410274
Wattage: 45W/60W/80W
Lumens: 6972L-11904L
Color Temperature: 3000/4000/5000 Kelvin
Bulb Color: CCT Switchable
CRI: 80+

See More Spec

$500.00

BUY BULK & SAVE!

Model: 65-941

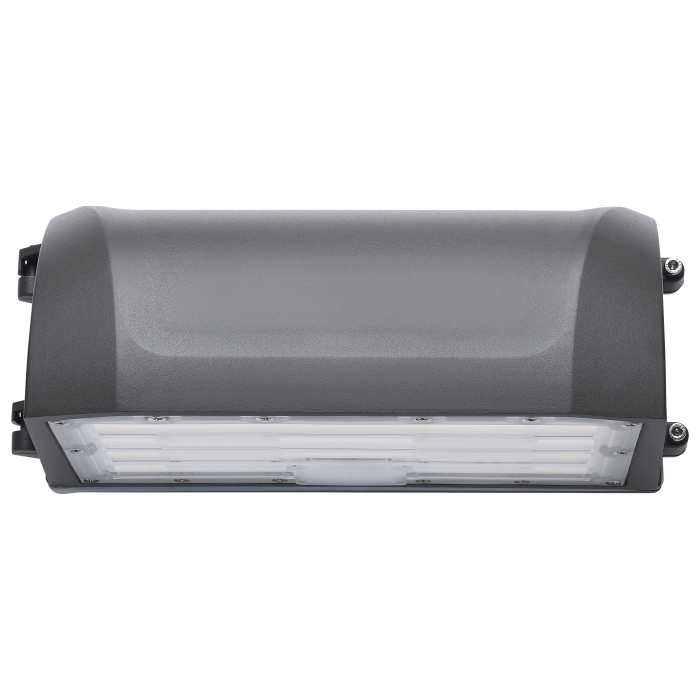

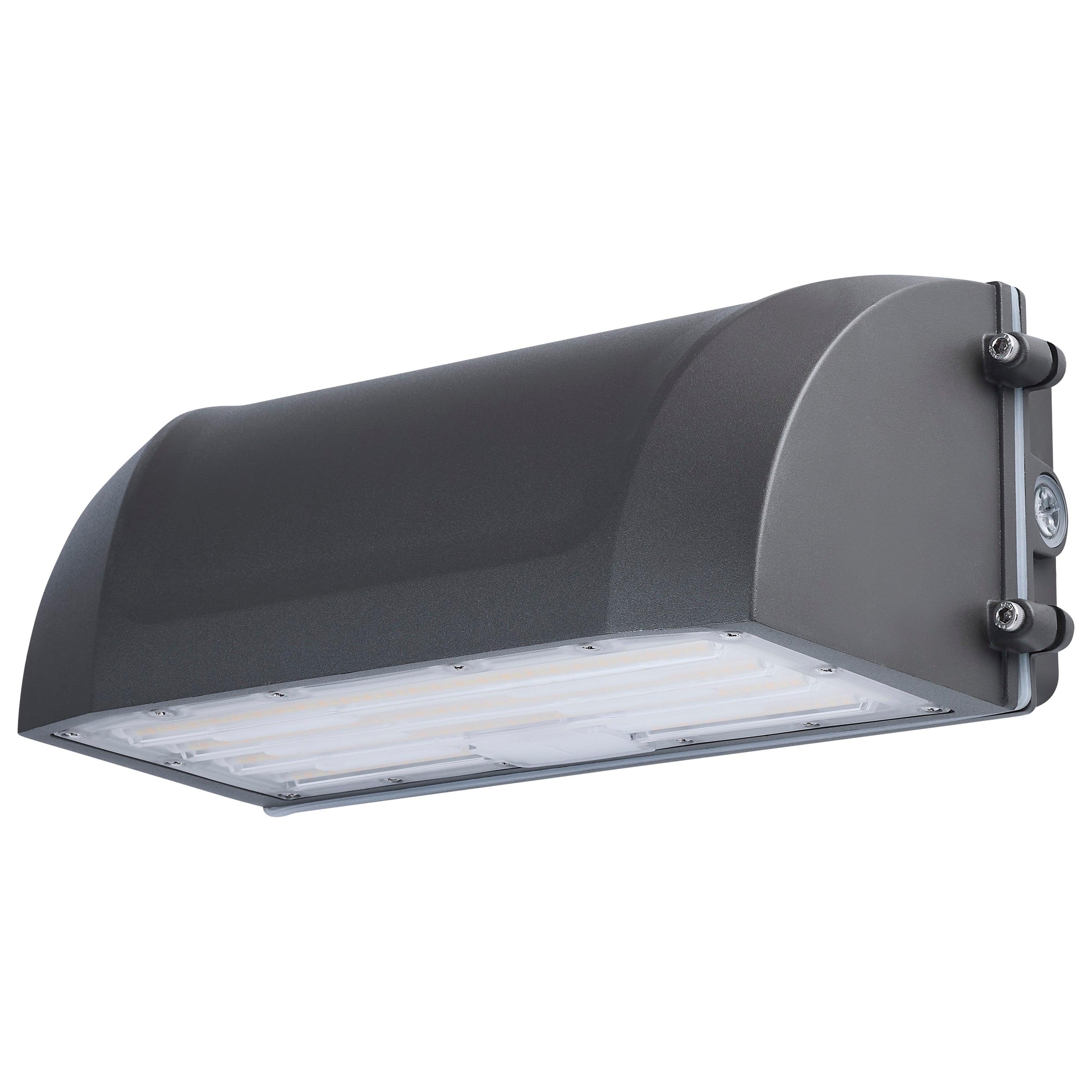

Upgrade commercial exterior lighting with the SATCO 65-941 LED Full Cutoff Wall Pack, a powerful and versatile outdoor fixture designed to deliver dependable illumination while keeping glare and unwanted light spill under control.

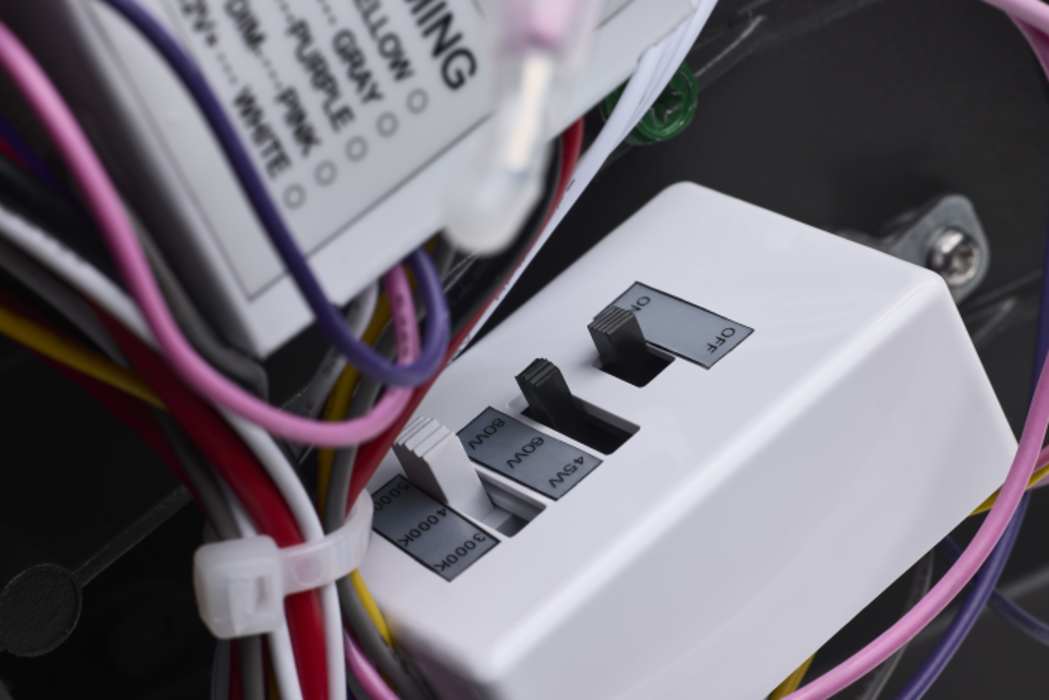

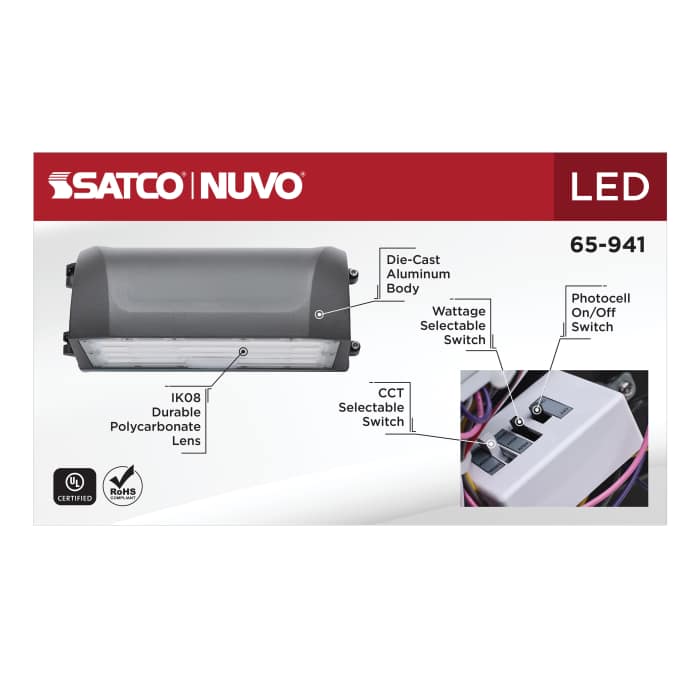

Built for commercial and industrial applications, the SATCO 65-941 features field-selectable wattage (45W, 60W, or 80W) and selectable color temperature (3000K, 4000K, or 5000K). One fixture can therefore be configured for different lighting requirements without stocking multiple models. Depending on the selected wattage, the fixture delivers approximately 6,972 to 11,904 lumens.

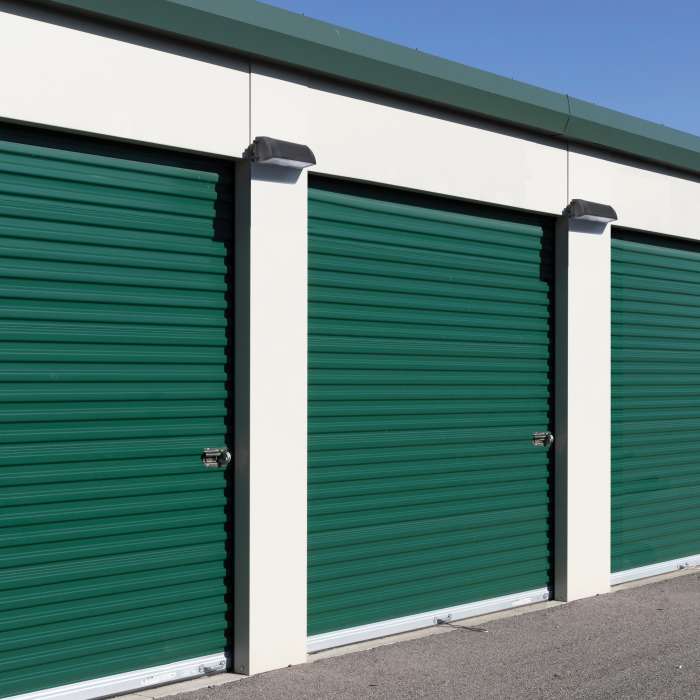

Its full cutoff design directs illumination downward and outward, helping minimize upward light, glare, and light trespass. This makes it an excellent LED wall pack for warehouses, loading docks, commercial buildings, schools, office properties, walkways, service entrances, and building perimeters.

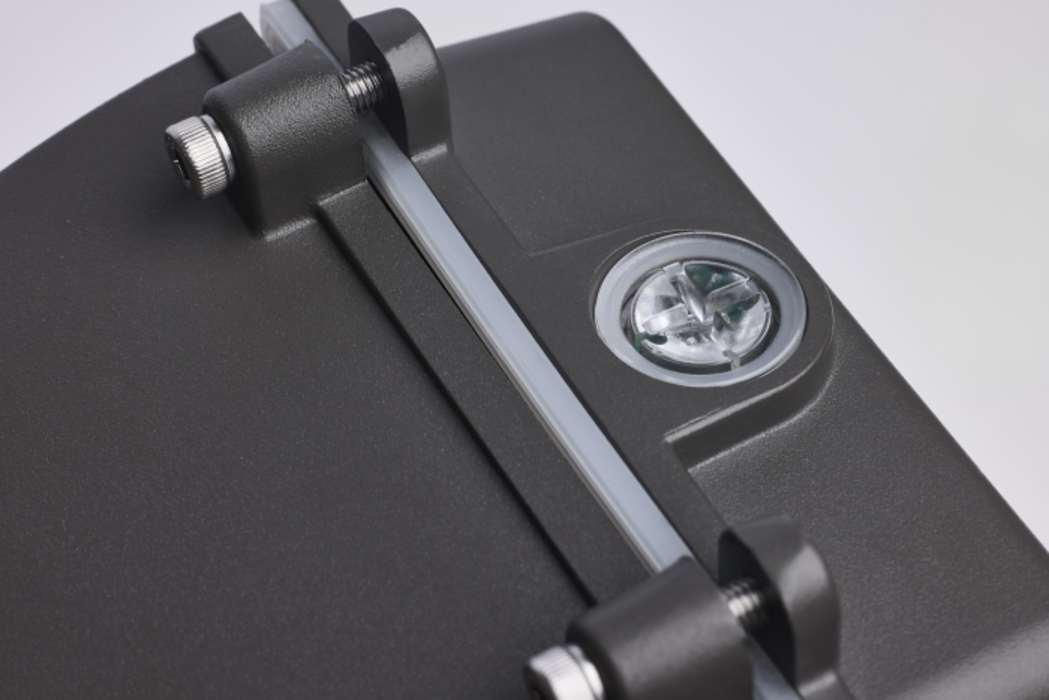

The fixture also includes an integrated bypassable photocell, allowing dusk-to-dawn operation when desired. 0-10V dimming provides additional lighting control, while universal 120-277V operation makes the fixture suitable for a wide range of commercial electrical systems.

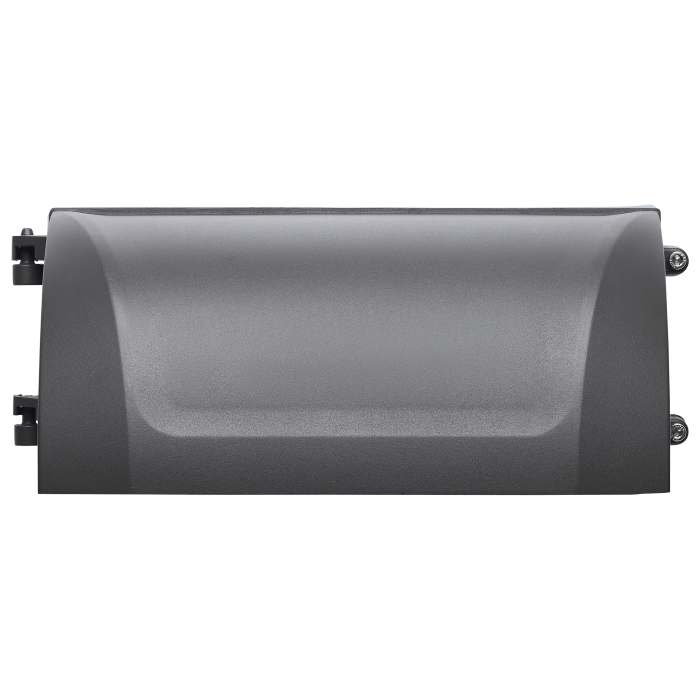

Constructed with a durable die-cast aluminum housing, bronze finish, and impact-resistant polycarbonate lens, the SATCO 65-941 is designed for demanding outdoor environments. It carries an IP65 rating, is rated for wet locations, incorporates 4kV surge protection, and has a 50,000-hour rated life. SATCO also backs the fixture with a 5-year warranty.

Key Features

45W / 60W / 80W selectable wattage
3000K / 4000K / 5000K selectable CCT
Approximately 6,972–11,904 lumens
Full cutoff design for improved light control
Integrated, bypassable photocell
0-10V dimmable
120-277V universal voltage
80+ CRI
IP65 and wet-location rated
Durable die-cast aluminum construction

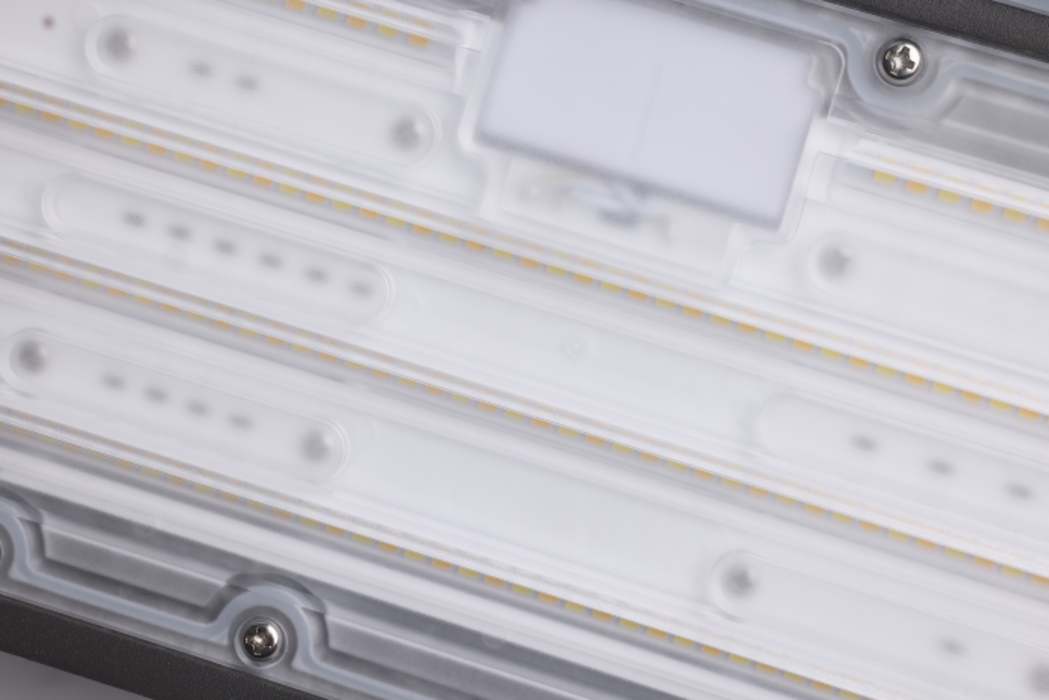

Impact-resistant polycarbonate lens
Bronze finish
Built-in 4kV surge protection
50,000-hour rated life
DLC approved and cULus certified
5-year manufacturer warranty

Whether you're replacing an older HID wall pack or specifying lighting for a new commercial property, the SATCO 65-941 LED Wall Pack provides the output, adjustability, and outdoor durability needed for professional exterior lighting applications.

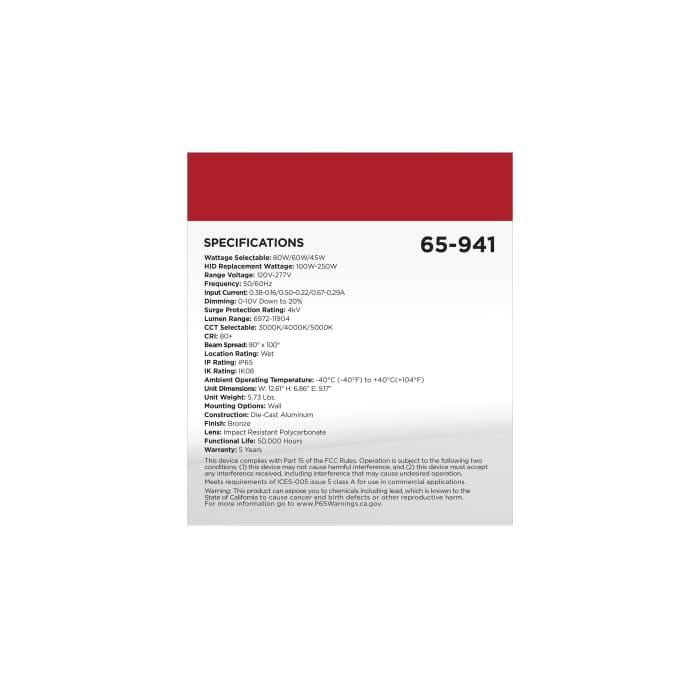

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Satco
Item number 65-941
UPC 10045923410274
Warranty 5 Years
Fixture Type Wall Pack

Electrical

Voltage 120/277 Volt
Wattage 45W/60W/80W
Power Factor >0.9
Dimmable Yes
Dimming 0-10V

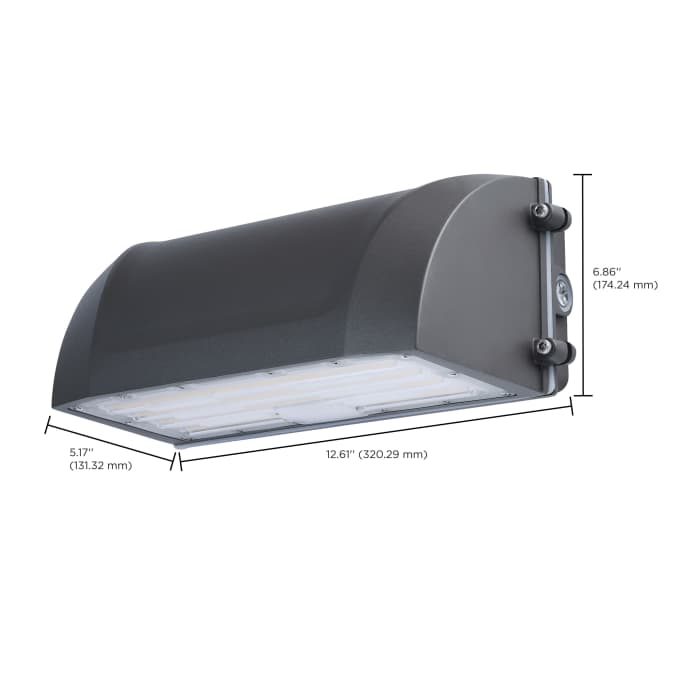

Size & Weight / Finish

Finish Bronze

Light Output & Performance

Color Temperature 3000/4000/5000 Kelvin
Bulb Color CCT Switchable
Lumens 6972L-11904L
CRI 80+
Beam Angle 90x100
Average Hours 50000

Certification

IP Code IP65
Wet Location Yes
cULus Listed Yes

Wireless Connection

Type

Included

Suitable

Warranty

Manufacturer Warranty Information

SATCO 65-941 - LED FULL CUTOFF WALL PACK provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
