RAB WFRL6R139FA120WS 6 inch LED ECO Downlight 13 Watt- Round - 5CCT Switchable - Smooth White Finish - High CRI - Wet Location

RAB WFRL6R139FA120WS 6 inch LED ECO Downlight 13 Watt- Round - 5CCT Switchable - Smooth White Finish - High CRI - Wet Location

Brand: RAB
Item number: WFRL6R139FA120WS
UPC: 019813682471
Trim Type: Smooth Trim
Product Type: LED Downlights
Incandescent Equivalent: 75 Watt
Wattage: 13 Watt
Lumens: 1048

See More Spec

$17.99

BUY BULK & SAVE!

Model: WFRL6R139FA120WS

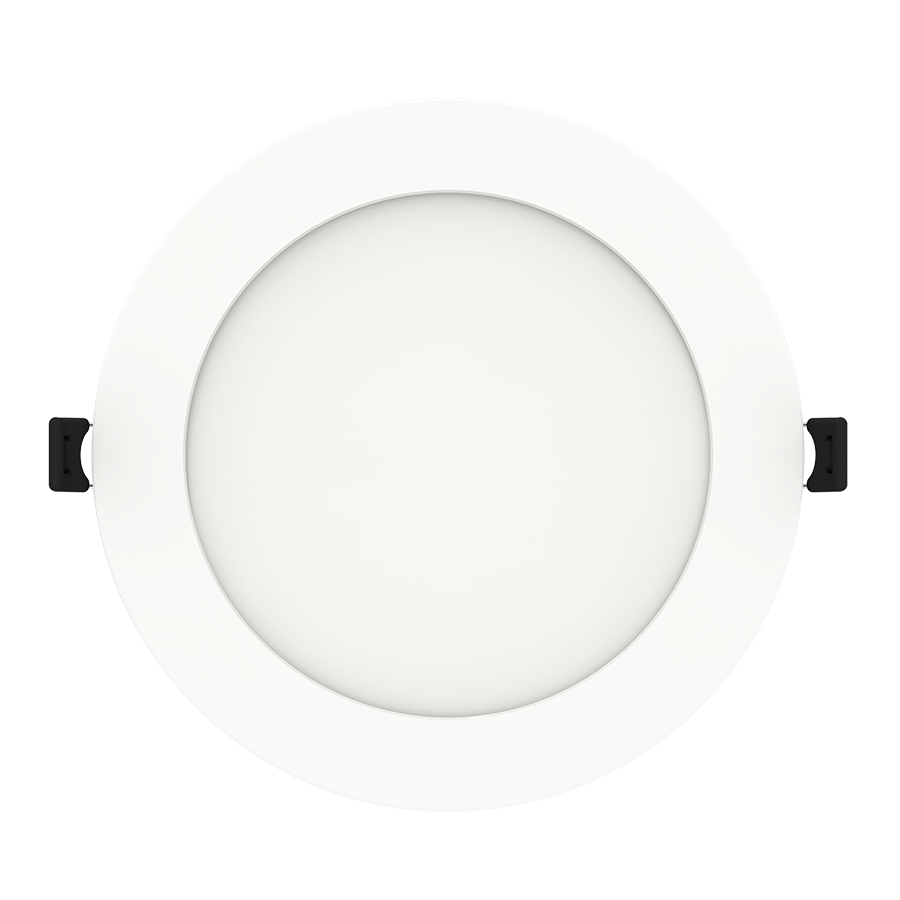

6 inch Slim LED Downlight Round - 13 Watt - 5CCT - Color Temperature Switchable
Field-adjustable wafers with edge-lit technology

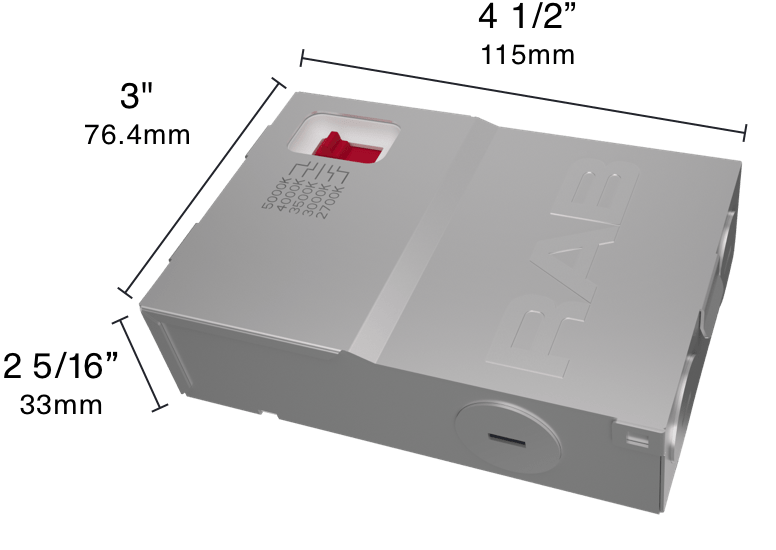

These field-adjustable wafer downlights allow you to change color temperature (5 options; 2700-5000K) with the flick of a switch! They’re ideal for both new construction and retrofit applications. Installations are super flexible with an off-board driver that minimizes installation height, maximizes thermal management, and eliminates the need for a traditional recessed housing or "can". A plenum-rated cable connector links the downlight module to the remote driver, and then the module snaps into place with the adjustable, spring-loaded retention clips.The remote driver box has quick connectors, knockouts and plenty of space for daisy chain wiring or adding an emergency backup unit.

FEATURES

5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)
Super slim Edge-lit fixture for thin fixture depth
No recessed housing or J-box required
New construction or retrofit applications
UL wet location rated
Smooth diffused uniform light distribution
Dimmable down to 5% on compatible dimmers
Spring loaded retention clips
Robust, die cast aluminum construction
IC and airtight rated
5-Year, No-Compromise Warranty

Specification Document

Installation Guide

Product's Page

Spec Sheet

Warranty

Download Full Datasheet

Product Identity

Brand RAB
Item number WFRL6R139FA120WS
UPC 019813682471
Product Type LED Downlights
Warranty 5 Year
Fixture Type Downlight

Electrical

Voltage 120 Volt
Wattage 13 Watt
Incandescent Equivalent 75 Watt
Power Factor >0.9
Dimmable Yes
THD <20%

Size & Weight / Finish

Height 1.75 Inch
Weight 0.2 lb
Downlight Size 5/6 Inch
Diameter 7.38 Inch
Finish White
Trim Finish White
Material Plastic
Shade Material Acrylic

Light Output & Performance

Color Temperature 2700/3000/3500/4000/5000 Kelvin
Bulb Color CCT Switchable
Lumens 1048
CRI 90
Beam Angle 110degree
Trim Type Smooth Trim
Average Hours 50000

Certification

UL listed Yes
Wet Location Yes
Safety Rating Airtight
Compliance FCCÂ
IC Rated Yes
Energy Star Yes
RoHS Compliant Yes

Wireless Connection

Type

Downlight Type Regressed
Lamp Type Integrated LED
Installation Type Clip on/No Can
Downlight Shape Round
Mount Type Recessed

Included

Suitable

Warranty

Manufacturer Warranty Information

RAB WFRL6R139FA120WS 6 inch LED ECO Downlight 13 Watt- Round - 5CCT Switchable - Smooth White Finish - High CRI - Wet Location provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
