Product Description
LED EdgeLit Panels 2 X 4 inch - DLC Standard - 50 Watt - 5000 Kelvin (Pack of 4)
LED Edge Light Panels Are Ideal for New Construction or Troffer Replacement in Offices, Hallways, Conference Rooms, Storage Areas, and other Commercial and Institutional Lighting Applications.
LED EdgeLit Panels 2X4 DLC Standard 50W 5000K Features Include:
- PMMA Light Guide Panel
- Flicker Free Driver
- Dimming: 0-10V / PWM / VR
- Compatible with most LED Dimming Systems
- 50,000+ Hour LED Life Expectancy
- SCDM: <6
- UGR: <22
- Power factor: >0.9
- CRI: >82
- Beam Angle: 120°
- Input Current: 0.55A
- THD: <13.1%
- Aluminum/Zinc Alloy Backplate & Aluminum Frame
- 6 Step MacAdam Elipse 2 Bin QC Program
- Color Temperature: 5000K
- Wattage: 50
- Operating Temperature: -22°F to 104°F
- cULus listed
- IP20 Dry Location Rated
- DLC Listed
- 5 Year Warranty
Full Specs
- Brand Morris Products
- Item number 71772A
- UPC 601986717724
- Product Type LED Fixtures
- Fluorescent Equivalent 128-216 Watt
- Wattage 50 Watt
- Lumens 5061
- Color Temperature 5000 Kelvin
- Bulb Color Daylight
- CRI >82
- Beam Angle 120 degree
- Dimmable 0 - 10V
- Voltage 120 Volt
- Voltage 120-277 Volt

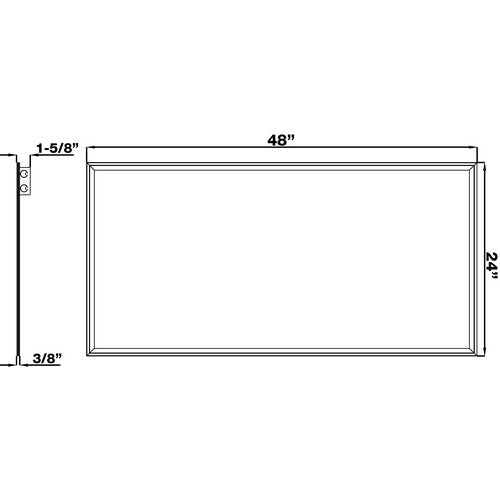

- Width 24 Inch
- Height 1.63 Inch
- IP Code IP20
- Length 48 Inch
- Fitter Fitter
- Bulb Color Daylight
- Finish White
- Power Factor >0.9
- THD <13.1%
- Warranty 5 Year
