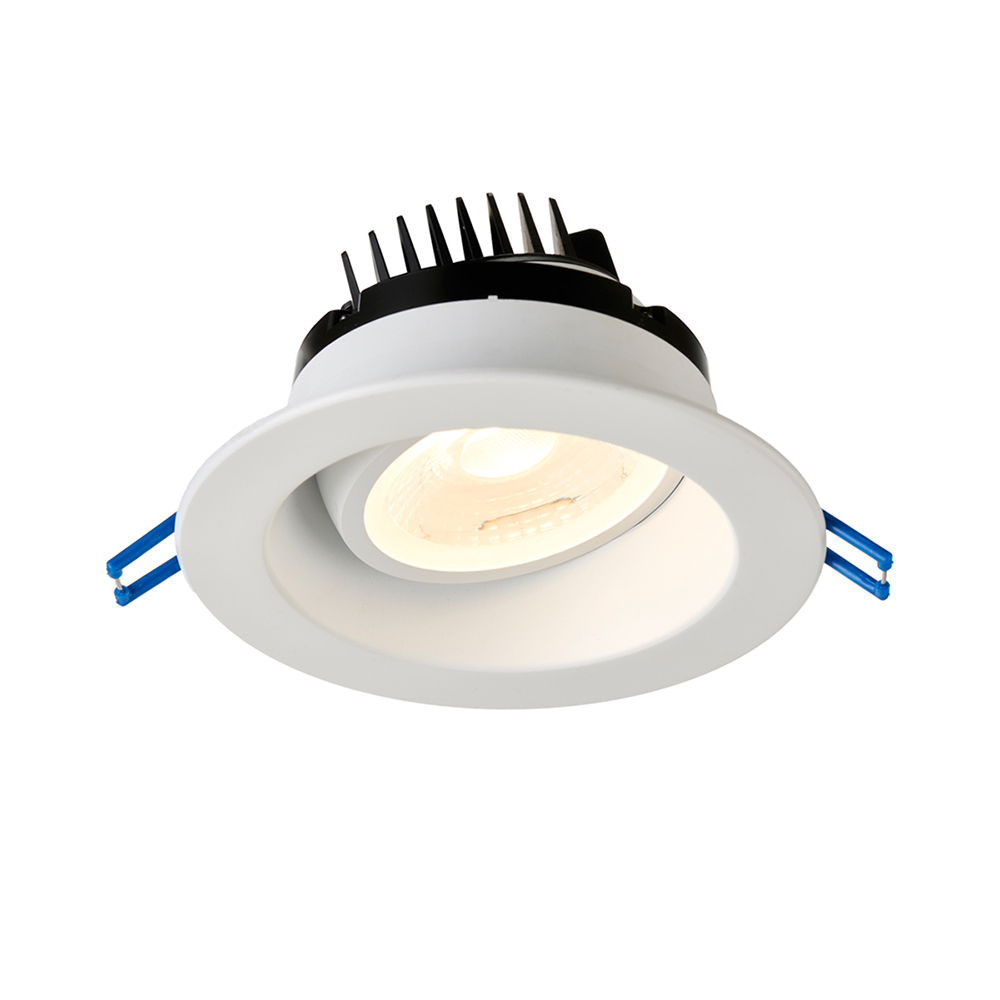

White round regressed gimbal LED downlight with adjustable light head and spring clips

Lotus LED Lights LRG4-3018K-WH-60D 4" Round Regressed Gimbal LED Downlight | 11.4W Dim-to-Warm, White

Brand: Lotus LED Lights
Item number: LRG4-3018K-WH-60D
Product Type: LED Downlights
Wattage: 11.4 Watt
Lumens: 980
Color Temperature: 30K-18K Kelvin
CRI: 90+
Beam Angle: 38 degree

See More Spec

$94.71

BUY BULK & SAVE!

Model: LRG4-3018K-WH-60D

The Lotus LED Lights LRG4-3018K-WH pairs adjustable directional lighting with dim-to-warm output that shifts from 3000K to 1800K as you dim. Its white round regressed trim, 20° tilt and 360° rotation suit general lighting, artwork and sloped ceilings up to 20°. The 3-inch-deep, airtight design installs without a recessed housing.

Specifications

Model: LRG4-3018K-WH
Nominal size: 4 inches; round regressed gimbal; white finish
Power: 11.4W; light output: 980 lumens
Color temperature: dim-to-warm, 3000K–1800K
Color rendering: CRI 90+
Standard beam angle: 38°
Adjustment: 20° tilt and 360° rotation
Included driver: 120V AC, TRIAC dimmable, inside connection box
Power factor: 0.95
Type IC rated for insulated ceilings; airtight; wet-location approved; IP54
Certifications: cULus and T24
Projected life: 70% light output at 50,000 hours
Ambient operating temperature: -40°F to +104°F (-40°C to +40°C)

Dimensions and installation

Inside diameter: 4¾ inches; outside diameter: 5¾ inches
Ceiling cutout: 4¾–5 inches
Required ceiling clearance: 3 inches
Mounts in the ceiling opening with attached spring clips; no housing or separate junction box required
Connection-box wire capacity: maximum five No. 12 AWG or eight No. 14 AWG wires

Warranty

10-year residential warranty / 5-year commercial warranty.

Specification Document

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number LRG4-3018K-WH-60D
Product Type LED Downlights
Warranty Residential - 10 Year / Commercial - 5 Year
Fixture Type Downlight

Electrical

Voltage 120 Volt
Wattage 11.4 Watt
Dimmable Yes

Size & Weight / Finish

Height 3 Inch
Downlight Size 4 Inch
Diameter 5.75 Inch
Finish White
Trim Finish White
Fixture Color Family White

Light Output & Performance

Color Temperature 30K-18K Kelvin
Lumens 980
CRI 90+
Beam Angle 38 degree
Average Hours 50000

Certification

IP Code IP54
Wet Location Yes
Safety Rating Air Tight
Compliance T24
CUL Yes
IC Rated Yes

Wireless Connection

Type

Downlight Type Regressed Gimbal
Lamp Type Integrated LED
Installation Type Clip on/No Can
Downlight Shape Round
Mount Type Recessed

Included

Suitable

Warranty

Manufacturer Warranty Information

Lotus LED Lights LRG4-3018K-WH-60D 4" Round Regressed Gimbal LED Downlight | 11.4W Dim-to-Warm, White provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
