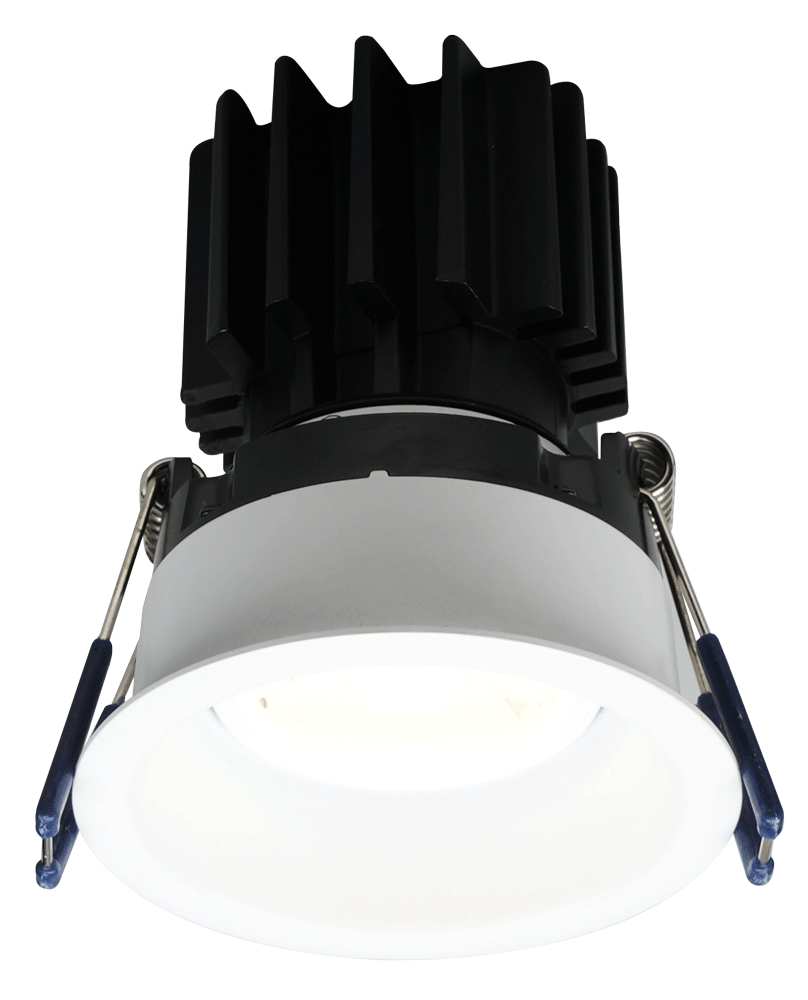

Lotus LED Lights LRG3-5CCT-HO-TT-WH 3" Round Regressed Gimbal LED Downlight | 11W High Output, 5CCT, White Thin Trim

The Lotus LED Lights LRG3-5CCT-HO-TT-WH combines a slim white trim with an adjustable, regressed gimbal for focused general lighting. Select one of five color temperatures and aim the light with 20° tilt and 360° rotation. Its air-tight, IC-rated design installs without a housing and is suitable for wet locations.

Specifications

• Model: LRG3-5CCT-HO-TT-WH
• 3-inch round regressed gimbal with white, 1/4-inch thin trim
• Power: 11W; 90W halogen equivalent
• Selectable color temperatures: 2700K, 3000K, 3500K, 4000K and 5000K
• Light output by color temperature: 962 lm at 2700K; 1008 lm at 3000K; 1046 lm at 3500K; 1060 lm at 4000K; 1054 lm at 5000K
• CRI: 90+
• Beam angle: 38°; tilt: 20°; rotation: 360°
• Included driver: 120V AC, TRIAC dimmable, inside connection box
• Power factor: 0.95
• Air-tight; Type IC rated; wet-location rated; IP54
• Certification: cULus
• Projected life: 70% light output at 50,000 hours
• Ambient temperature: -40°F to +104°F (-40°C to +40°C)
• Inside diameter: 2 1/2 inches; outside diameter: 3 1/8 inches; cutout: 2 3/4 inches
• Fixture depth: 3 1/2 inches; required ceiling clearance: 4 inches

Installation and compatibility

Cut the ceiling opening and secure the fixture using the attached spring clips. No housing or separate junction box is required. Suitable for insulated ceilings, wet locations and sloped ceilings up to 20°. Connection-box wire capacity is a maximum of five No. 12 AWG or eight No. 14 AWG wires.

For 120–347V AC input with 0–10V dimming, order optional driver LLL-LD1025T3 separately. Optional accessories sold separately include EXC6 and EXC20 low-voltage extension cables (maximum 40 ft allowed), MP234 flat mounting plate, RIP234 rough-in plate and FRP234 flanged plate with hanger bars. This model provides selectable 5CCT, not dim-to-warm operation.

Warranty

10-year residential warranty / 5-year commercial warranty.
