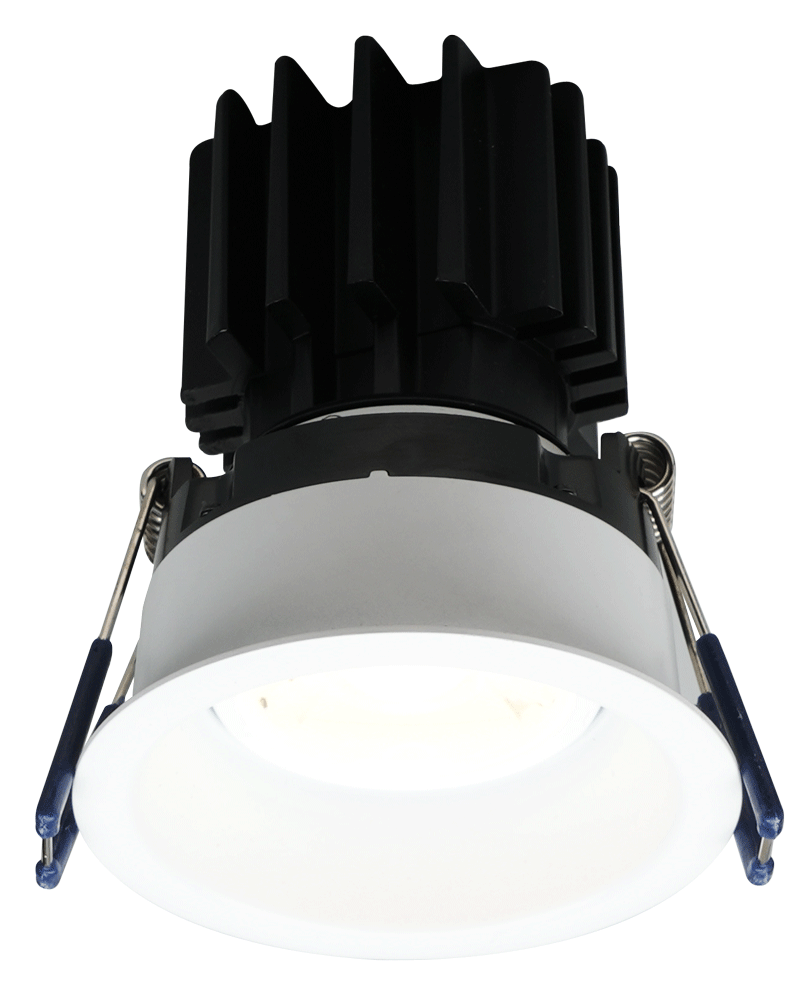

Lotus LED Lights LRG3-3018K-HO-TT-WH 3" Regressed Gimbal LED Downlight | 11W Dim-to-Warm, White Thin Trim

The Lotus LED Lights LRG3-3018K-HO-TT-WH combines a white thin trim with a regressed, adjustable gimbal for focused general lighting. Dim-to-warm operation provides a 3000K–1800K range for a warmer atmosphere when dimmed. Its air-tight, IC-rated design installs without a housing and is suitable for wet locations.

Specifications

• Model: LRG3-3018K-HO-TT-WH
• 3-inch round regressed gimbal; white finish; 1/4-inch thin trim
• Power: 11W; 90W halogen equivalent
• Dim-to-warm: 3000K–1800K; light output: 770 lumens
• CRI: 90+; beam angle: 38°; tilt: 20°; rotation: 360°
• Included driver: 120V AC, TRIAC dimmable, inside connection box
• Power factor: 0.95
• Type IC rated; air-tight; wet-location rated; IP54; cULus certification
• Projected life: 70% light output at 50,000 hours
• Ambient temperature: -40°F to +104°F (-40°C to +40°C)
• Inside diameter: 2 1/2 inches; outside diameter: 3 1/8 inches; cutout: 2 3/4 inches
• Fixture depth: 3 1/2 inches; required ceiling clearance: 4 inches

Installation and compatibility

Cut the ceiling opening and secure the fixture with the attached spring clips. No housing or separate junction box is required. Suitable for insulated ceilings, wet locations and sloped ceilings up to 20°. Connection-box wire capacity: maximum five No. 12 AWG or eight No. 14 AWG wires.

For 120V–347V AC input with 0–10V dimming, order optional driver LLL-LD1025T3 separately. Optional accessories sold separately include EXC6 and EXC20 low-voltage extension cables (maximum 40 feet allowed), MP234 flat mounting plate, RIP234 rough-in plate and FRP234 flanged plate with hanger bars. This model is dim-to-warm, not selectable 5CCT.

Warranty

10-year residential warranty / 5-year commercial warranty.
