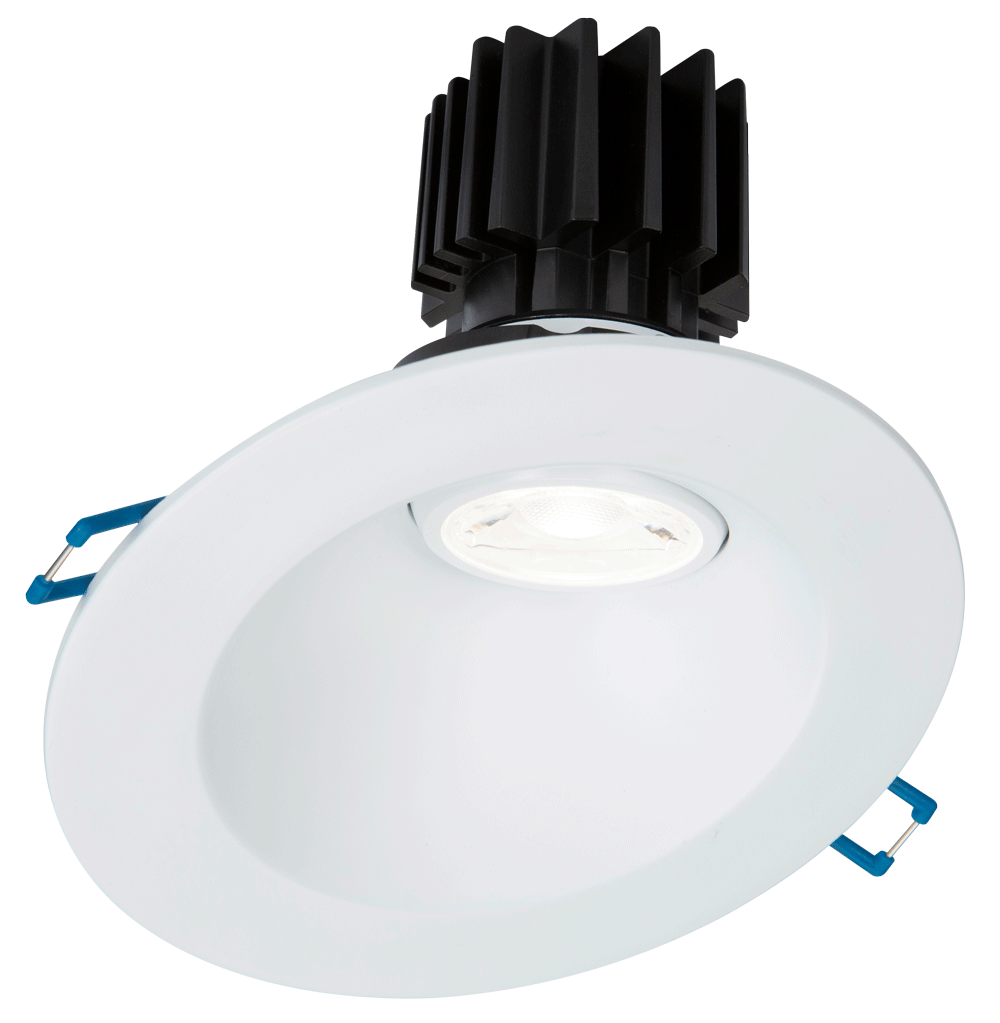

Lotus LED Lights LRG3-3018K-HO-4RSL-WH 4" Sloped Regressed Gimbal LED Downlight | 11W Dim-to-Warm, White

The Lotus LED Lights LRG3-3018K-HO-4RSL-WH brings focused, adjustable light to sloped ceilings and wall-washing applications. Its white 30° sloped trim and regressed gimbal combine with 3000K–1800K dim-to-warm light for a warmer atmosphere as the light dims. The air-tight, IC-rated design installs without a housing, with the driver housed inside the included connection box.

Specifications

• Model: LRG3-3018K-HO-4RSL-WH
• 4-inch round sloped regressed gimbal; white trim
• Power: 11W; 90W halogen equivalent
• Dim-to-warm: 3000K–1800K; light output: 770 lumens
• CRI: 90+; beam angle: 38°; tilt: 20°; rotation: 360°
• Included driver: 120V AC, TRIAC dimmable, inside connection box
• Power factor: 0.95
• Type IC rated; air-tight; wet-location rated; IP54; cULus certification
• Projected life: 70% light output at 50,000 hours
• Ambient temperature: -40°F to +104°F (-40°C to +40°C)
• Inside diameter: 4 1/2 inches; outside diameter: 5 3/4 inches
• Fixture depth: 4 inches; required ceiling clearance: 3 1/2 inches
• Cutout: 4 1/2-inch to 5-inch round hole

Installation and compatibility

Suitable for sloped ceilings from 5° to 55°, wall washing, insulated ceilings and wet locations. Cut the ceiling opening and snap the fixture into place. No housing or separate junction box is required. Connection-box wire capacity: maximum five No. 12 AWG or eight No. 14 AWG wires. This model is dim-to-warm, not selectable 5CCT.

Compatible accessories, sold separately

• EXC6 low-voltage extension cable, 6 feet
• EXC20 low-voltage extension cable, 20 feet; maximum total extension allowed: 40 feet
• RIP412 flat rough-in plate
• FRP412 flanged plate with hanger bars
• LLL-LD1025T optional driver for 120V–347V AC input and 0–10V dimming
• BLD-HM15D-YYY emergency backup driver for TRIAC drivers; non-dimmable emergency backup configuration
• For the optional 0–10V driver configuration, the sheet specifies BLD-HM08D-YYY emergency backup driver, 0–10V dimmable

Accessories and optional drivers are not included.

Warranty

10-year residential warranty / 5-year commercial warranty.
