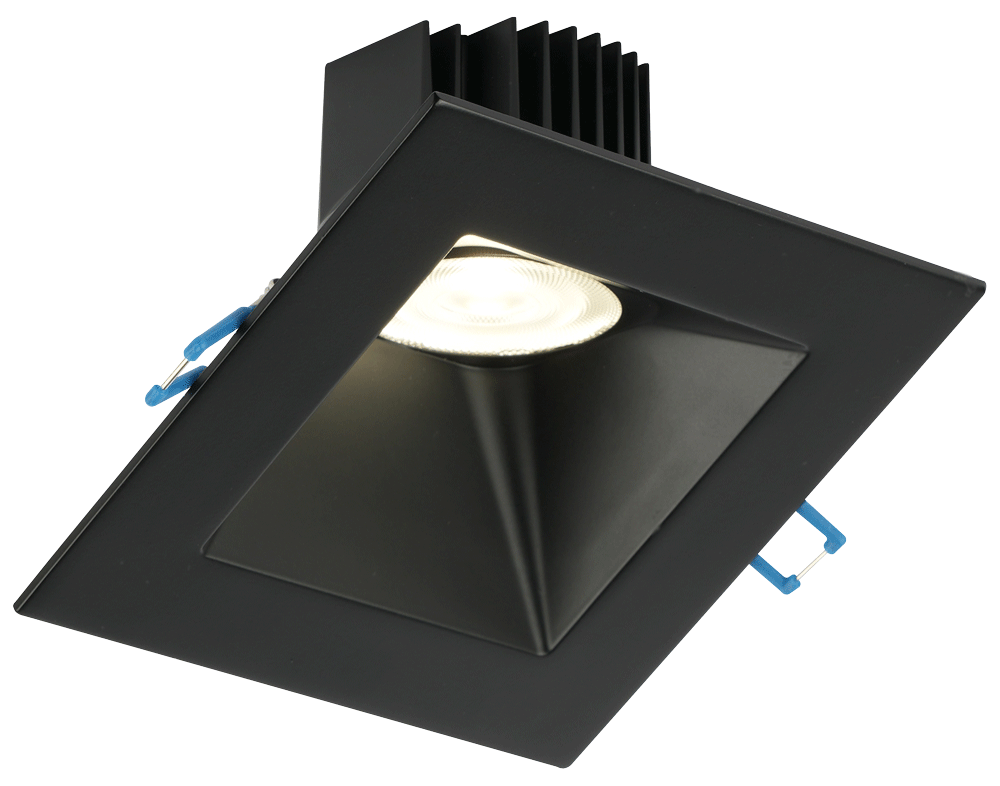

Lotus LED Lights LD3S-5CCT-5SSL-WH-60D 5 Inch Square Sloped Regressed LED - 15 Watt - 5CCT Switchable Black Trim

  • Brand: Lotus LED Lights
  • Item number: LD3S-5CCT-5SSL-WH-60D
  • UPC: 733447501839
  • Product Type: LED Downlights
  • Halogen Equivalent: 120 Watt
  • Wattage: 15 Watt
  • Lumens: 1220/1270/1350/1380/1400
  • Color Temperature: 2700/3000/3500/4000/5000 Kelvin
See More Spec
  • $109.34


Shipping: 4 to 5 business days.

  BUY BULK & SAVE!

Model: LD3S-5CCT-5SSL-WH-60D

The Lotus LED LD3S-5CCT-5SSL-WH-60D is a high-performance 5-inch square sloped regressed LED designed for applications where wide, even light distribution and low glare are essential.

Built for 30° sloped ceilings, this fixture features a 3/4" regressed lens paired with a 60° wide beam angle, delivering smooth, uniform illumination across larger areas. It’s the ideal solution for spaces that require broad light coverage without harsh hotspots or glare.

With 5CCT selectable color temperatures (2700K–5000K) and a 90+ CRI, this fixture ensures accurate, vibrant color rendering in any environment—from warm, inviting residential spaces to bright, functional commercial settings. For enhanced ambiance, an optional Dim-to-Warm feature (3000K → 1800K) allows lighting to transition to softer tones.

Installation is fast and efficient thanks to the integral driver housed inside the connection box, eliminating the need for a separate junction box. Its ultra-slim 3 1/2" profile makes it perfect for projects with limited ceiling space.

Finished with a clean white trim, this fixture blends seamlessly into modern interiors while delivering reliable, high-quality performance.


💡 Key Features:

  • 💡 60° wide beam angle – ideal for general and ambient lighting
  • 🧊 3/4" regressed design reduces glare and improves comfort
  • 📐 Designed for 30° sloped ceilings
  • 🎨 5CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
  • 🌙 Optional Dim-to-Warm (3000K → 1800K)
  • 🔆 90+ CRI for accurate color rendering
  • ⚙️ 15W energy-efficient LED performance
  • 📦 Driver inside connection box – no junction box required
  • 🏗 Ultra-slim (3 1/2" depth) – ideal for tight ceiling spaces
  • 🌧 IC Rated, Airtight & Wet Location Approved

🔄 Available Beam Angle Options:

  • 15° – ultra-narrow spotlighting (artwork, focal points)
  • 24° – controlled directional lighting
  • 38° – standard general lighting
  • 60° (this model) – wide, even light distribution

Specification Document

Product Identity
  • Brand Lotus LED Lights
  • Item number LD3S-5CCT-5SSL-WH-60D
  • UPC 733447501839
  • Product Type LED Downlights
  • Warranty Commercial 10 year - residental 5 year
  • Fixture Type Downlight Retrofit
Electrical
  • Voltage 120 Volt
  • Wattage 15 Watt
  • Halogen Equivalent 120 Watt
  • Dimmable Yes
Size & Weight / Finish
  • Downlight Size 5 Inch
  • Diameter 5.14 Inch
  • Trim Finish Black
Light Output & Performance
  • Color Temperature 2700/3000/3500/4000/5000 Kelvin
  • Lumens 1220/1270/1350/1380/1400
  • Beam Angle 60 degree
  • Average Hours 50000
Certification
  • IP Code IP54
  • Wet Location Yes
  • Safety Rating Air Tight
  • IC Rated Yes
Wireless Connection
Type
  • Lamp Type Integrated LED
  • Installation Type Clip on/No Can
  • Downlight Shape Square
Included
Suitable

Warranty

Manufacturer Warranty Information

Lotus LED Lights LD3S-5CCT-5SSL-WH-60D 5 Inch Square Sloped Regressed LED - 15 Watt - 5CCT Switchable Black Trim provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
