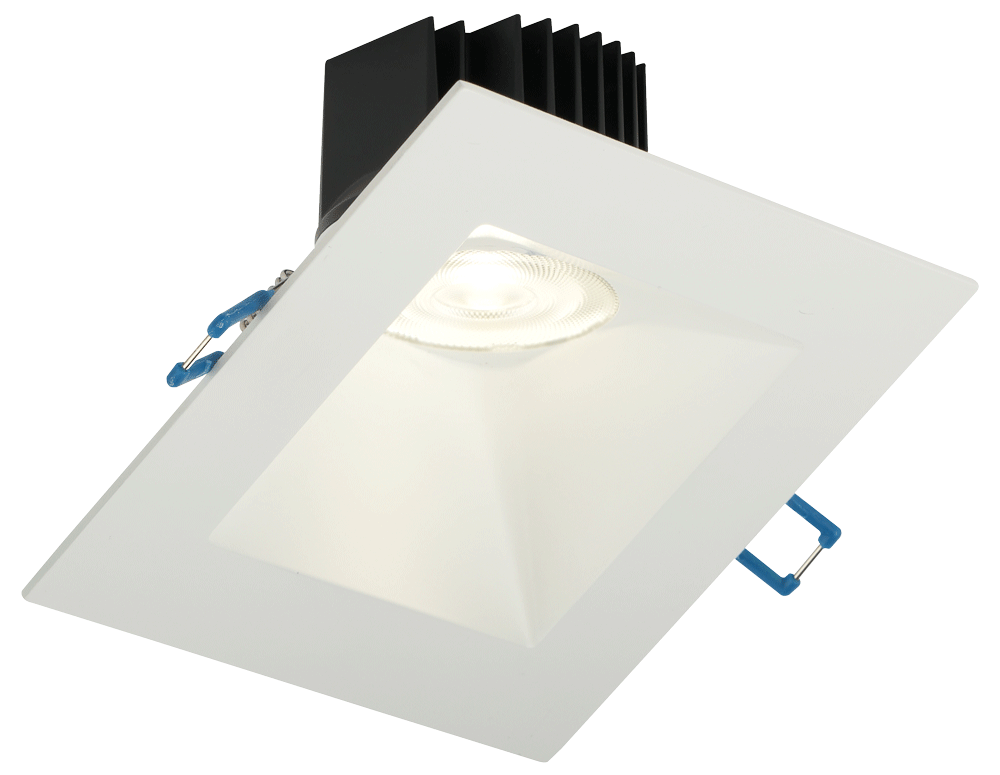

Lotus LED Lights LD3S-5CCT-5SSL-WH-15D 5 Inch Square Sloped Regressed LED - 15 Watt - 5CCT Switchable Warm White Trim

  • Brand: Lotus LED Lights
  • Item number: LD3S-5CCT-5SSL-WH-15D
  • UPC: 733447501839
  • Product Type: LED Downlights
  • Halogen Equivalent: 120 Watt
  • Wattage: 15 Watt
  • Lumens: 1220/1270/1350/1380/1400
  • Color Temperature: 2700/3000/3500/4000/5000 Kelvin
See More Spec
  • $109.34


Shipping: 4 to 5 business days.

  BUY BULK & SAVE!

Model: LD3S-5CCT-5SSL-WH-15D

The Lotus LED LD3S-5CCT-5SSL-WH-15D is a precision-engineered 5-inch square sloped regressed LED designed for applications where tight beam control, low glare, and clean aesthetics are essential.

Featuring a 3/4" regressed lens and a 15° ultra-narrow beam angle, this fixture delivers sharp, focused illumination—perfect for highlighting artwork, architectural details, and focal points with minimal light spill. It’s built for spaces where lighting isn’t just functional—it’s intentional.

Designed for 30° sloped ceilings, this recessed LED integrates seamlessly into modern interiors while maintaining a discreet, architectural look with its warm white trim finish.

With 5CCT selectable color temperatures (2700K–5000K) and a 90+ CRI, you get accurate, vibrant color rendering across any environment. For more dynamic spaces, an optional Dim-to-Warm feature (3000K → 1800K) creates a smooth transition to warmer tones, ideal for hospitality and residential settings.

Installation is fast and efficient thanks to the integral driver housed inside the connection box, eliminating the need for a separate junction box. Combined with a compact 3 1/2" depth, this fixture is perfect for projects with limited ceiling space.


💡 Key Features:

  • 🎯 15° ultra-narrow beam – ideal for spotlighting and accent lighting
  • 🧊 3/4" regressed design reduces glare and enhances visual comfort
  • 📐 Designed for 30° sloped ceilings
  • 🎨 5CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
  • 🌙 Optional Dim-to-Warm (3000K → 1800K) for ambient control
  • 🔆 90+ CRI for true-to-life color rendering
  • ⚙️ 15W energy-efficient performance
  • 📦 Driver in connection box – no junction box required
  • 🏗 Ultra-slim (3 1/2" depth) – ideal for tight ceiling installations
  • 🌧 IC Rated, Airtight & Wet Location Approved


    🔄 Available Beam Angle Options:

    • 15° – ultra-narrow spotlighting (artwork, focal points)
    • 24° (this model) – balanced directional lighting
    • 38° – general lighting (standard option)
    • 60° – wide flood coverage

Specification Document

Product Identity
  • Brand Lotus LED Lights
  • Item number LD3S-5CCT-5SSL-WH-15D
  • UPC 733447501839
  • Product Type LED Downlights
  • Warranty Commercial 10 year - residental 5
  • Fixture Type Downlight Retrofit
Electrical
  • Voltage 120 Volt
  • Wattage 15 Watt
  • Halogen Equivalent 120 Watt
  • Dimmable Yes
Size & Weight / Finish
  • Downlight Size 5 Inch
  • Diameter 5.14 Inch
  • Trim Finish White
Light Output & Performance
  • Color Temperature 2700/3000/3500/4000/5000 Kelvin
  • Bulb Color CCT Switchable
  • Lumens 1220/1270/1350/1380/1400
  • CRI 90+
  • Beam Angle 15 degree
  • Average Hours 50000
Certification
  • IP Code IP54
  • Wet Location Yes
  • Safety Rating Air Tight
  • CUL Yes
  • IC Rated Yes
Wireless Connection
Type
  • Lamp Type Integrated LED
  • Installation Type Clip on/No Can
  • Downlight Shape Square
Included
Suitable

Warranty

Manufacturer Warranty Information

Lotus LED Lights LD3S-5CCT-5SSL-WH-15D 5 Inch Square Sloped Regressed LED - 15 Watt - 5CCT Switchable Warm White Trim provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
