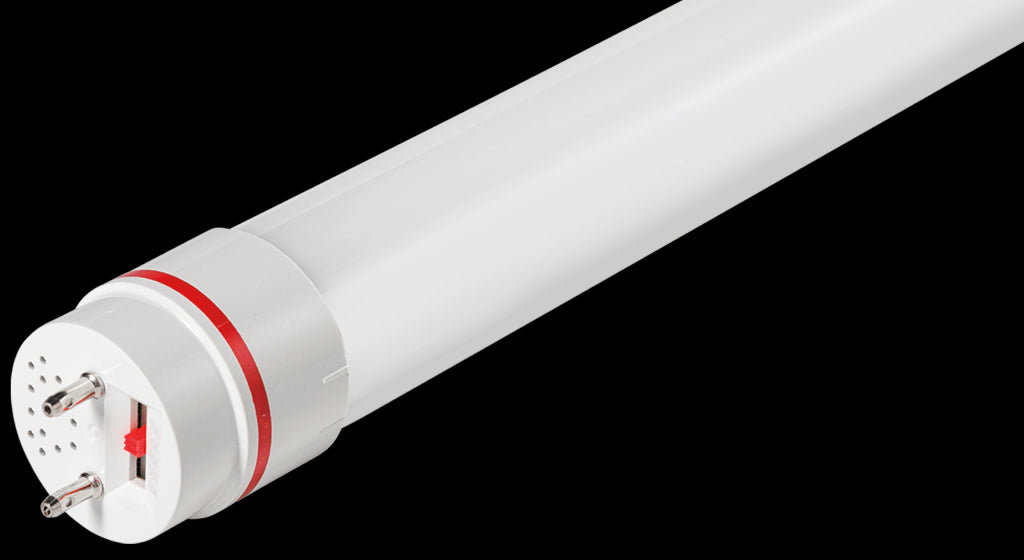

Keystone KT-LED-14.5T8-48G-8CSJ-DX2 DirectDrive 48 inch T8 LED Tubes - CCT Select - Single or Double-ended Line Voltage
- Brand: Keystone
- Item number: KT-LED-14.5T8-48G-8CSJ-DX2
- UPC: 843654154596
- Bulb Type: T8
- Base Code: G13
- Base Type: Medium Bi Pin
- Product Type: LED
- Wattage: 14.5 Watt
Available only in a 25 Pack (Total Price $281.25)
Model: KT-LED-14.5T8-48G-8CSJ-DX2
14.5 Watt T8 LED Lamp - 3000/3500/4000/5000/6500K - G13 - > 80 CRI High-Efficiency - Single or Double-ended Line Voltage Wiring
- Replacement for conventional fluorescent lamp
- Single- or double-ended line voltage wiring
- Keystone Color Select technology (3000/3500/4000/5000/6500K)
- Instant startup
- Frosted glass lens eliminates pixelation
- Approximately 50% more energy-efficient than standard F32T8 lamps
- Environmentally friendly: No mercury used
- 120+ Lumens per Watt
- Operating temperature: −20ºC/−4ºF to 45ºC/113ºF
- Storage temperature: −30ºC/−22ºF to 60ºC/140ºF
- Operating humidity: 10–80%
- Integral driver (isolated) eliminates the need for external driver or ballast
- Not compatible with Keystone AC emergency drivers: KT-EMRG-LED-5-500-AC, KT-EMRG-LED-5-500-AC/DF, KT-EMRG-LED-12-1200-AC, or KT-EMRG-LED-12-1200-AC /DF
- Not rated for use in Vapor Tight style fixtures
- Meets FCC Part 15, Class B
- 50,000+ hour lifetime
- UL Classified
- Lamp is dimmable when used with an appropriate dimming accessory (purchased separately). Contact Keystone for more details to find out what is best for the intended application.
Specification Document
Download Full Datasheet
Product Identity
- Brand Keystone
- Item number KT-LED-14.5T8-48G-8CSJ-DX2
- UPC 843654154596
- Product Type LED
- Warranty Commercial 10 year - residental 5 year
Electrical
- Voltage 120-277 Volt
- Wattage 14.5 Watt
- Dimmable Yes
Size & Weight / Finish
- Length 47.2 Inch
- Weight 1 lb
- Diameter 1.1 Inch
- Finish Frost
Light Output & Performance
- Color Temperature 3000/3500/4000/5000/6500 Kelvin
- Bulb Color CCT Switchable
- Lumens 1725-1850
- CRI 80
- Beam Angle 240 degree
- Average Hours 50000
Certification
- UL listed Yes
- CUL Yes
- DLC Listed Yes
- RoHS Compliant Yes
Wireless Connection
Type
- Bulb Type T8
- Base Type Medium Bi Pin
- Base Code G13
- LED Linear Type Direct Wire
Included
Suitable
Warranty
Manufacturer Warranty Information
Keystone KT-LED-14.5T8-48G-8CSJ-DX2 DirectDrive 48 inch T8 LED Tubes - CCT Select - Single or Double-ended Line Voltage provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
