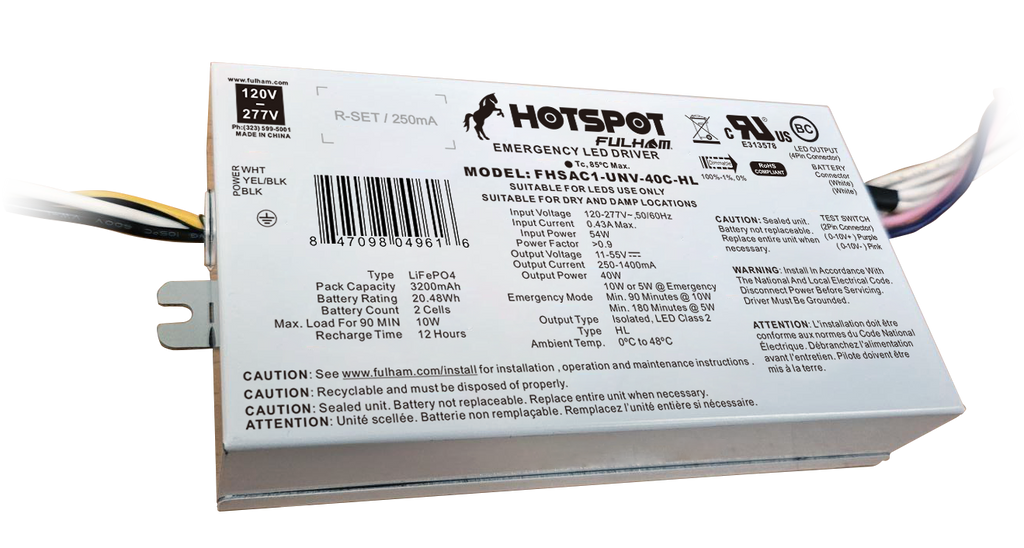

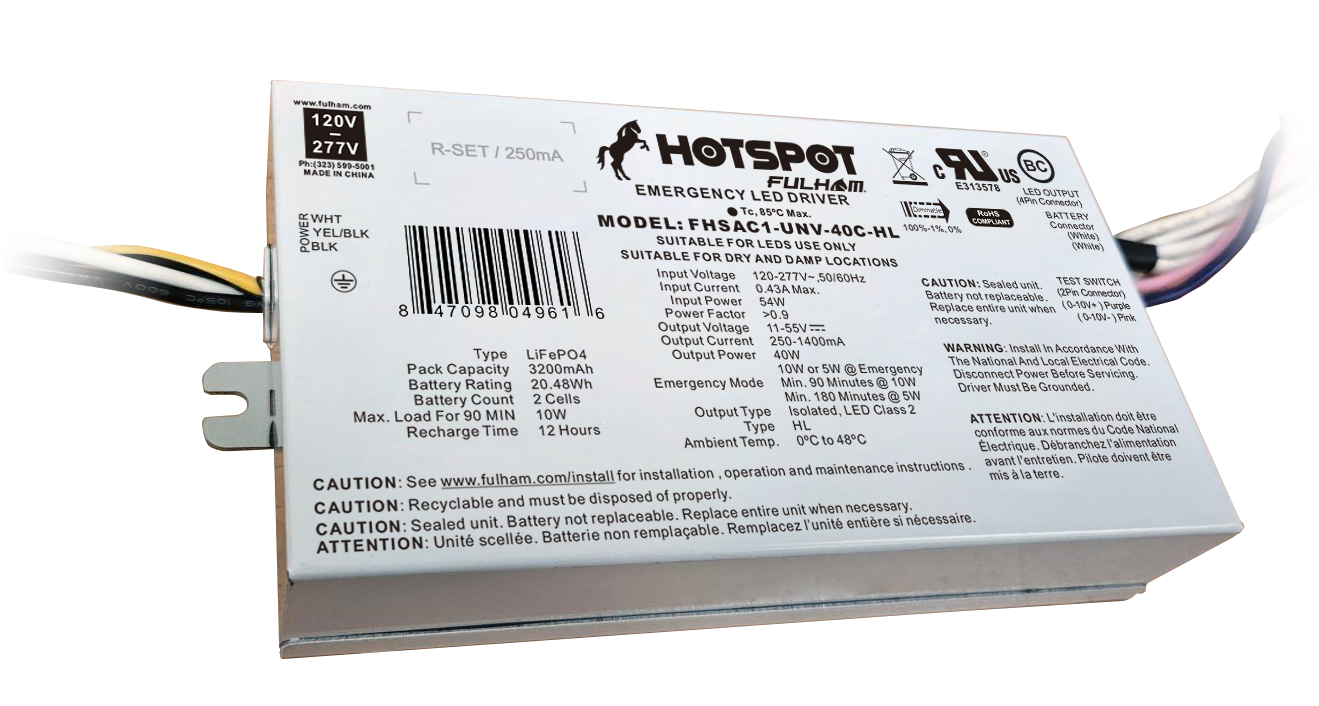

Fulham FHSAC1-UNV-40C-HL HotSpot Plus Emergency LED Driver Constant Current Programable - Up to 40 Watt - Universal Voltage 120-277V

The FHSAC1-UNV-40C-HL HotSpot™ Plus emergency driver is a 0-10V dimmable 40W Constant current Class 2 LED driver with integrated emergency capability of 10W for 90 minutes or 5W for 180 minutes. The unit is intended for applications where compact component sizing is required. The unit is cURus Type HL, meets CEC title 20 and is self-diagnostic.

• LED Driver with integrated emergency backup
• Universal Voltage: 120-277V~ , 50/60Hz
• Output Wattage: 40W Max.
• 10 Watt 90 minute EM output
• 5 Watt 180 minutes EM output
• Output Current: 11-55VDC, 250mA – 1400mA output (programmable w/ Fulham's convenient TPSB-100 handheld programmer
• Compact case with side leads
• Meets UL 924 & NFPA 101
• Type HL

Emergency Driver Features:

• Small unit as a combo normal LED driver, EM driver and battery pack at just 6.32" X 3.13" X 1.14" total dimensions
• Single unit installation - reduced assembly labor Self-diagnostic – removes need for cumbersome manual testing
• Type HL rated
• Fully potted

Suitable applications include:

• Light panels
• Wall packs
• Downlights
• Flood lights
• Oil & gas industry applications
• Paint booths or proximity to VOCs (volatile organic compounds)
