Exitronix VLED-U-WH-EL90L-G2 Red LED Exit Sign & Emergency Light Combo, White, Self-Testing

$0.00

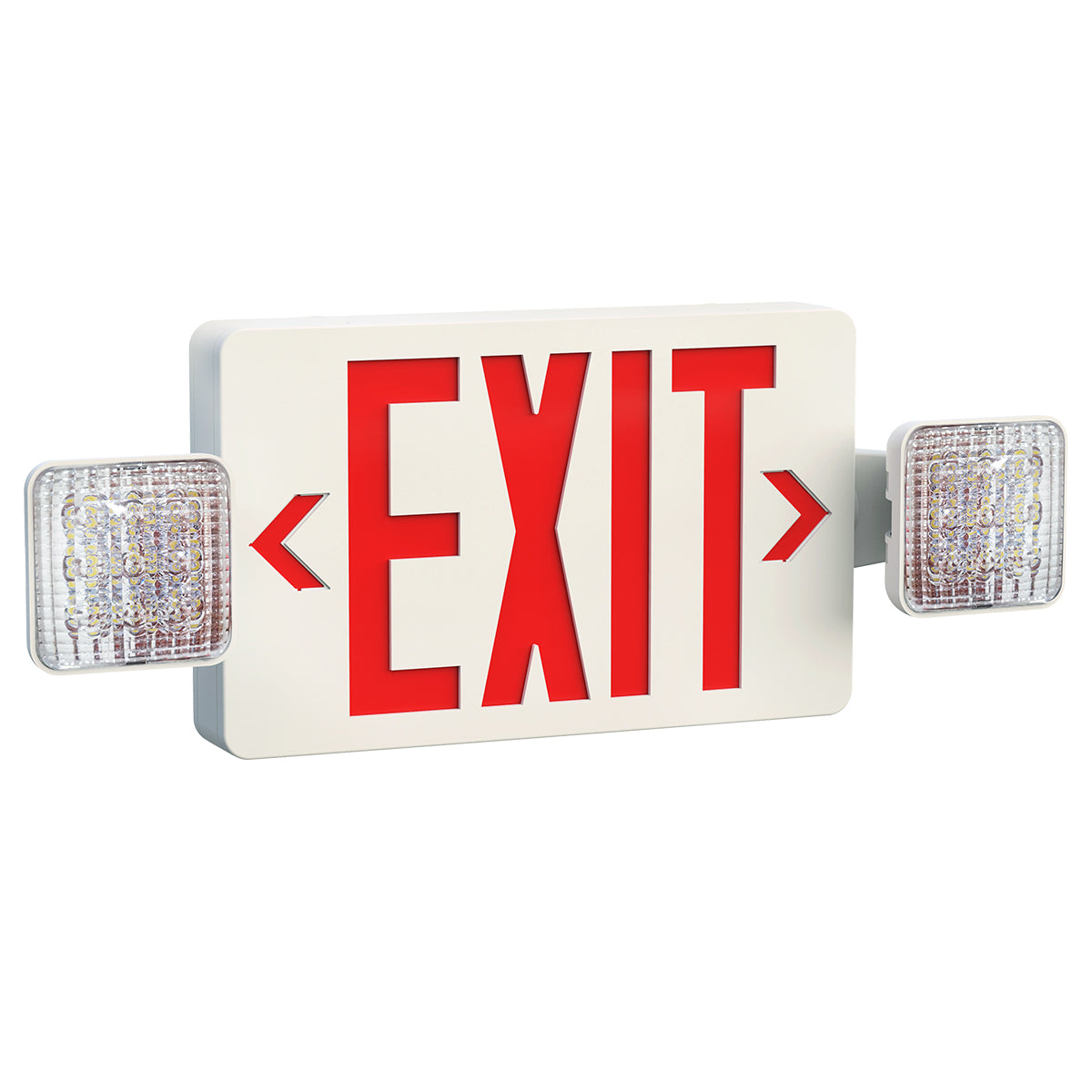

The Exitronix VLED-U-WH-EL90L-G2 combines a red LED exit sign with two fully adjustable emergency lamp heads in a low-profile white thermoplastic housing. Its universal configuration includes two faceplates, a backplate and a mounting canopy for ceiling or wall installation.

Features

GUARDIAN G2 self-test/self-diagnostics monitors AC power, battery supply and charging circuitry, with visual service alerts.
Two 0.75W LED emergency lamp heads; listed lumen output: 150 lm.
Minimum 90-minute emergency operation with a maximum 24-hour battery recharge time.
Maintenance-free 3.6V 900mAh NiCad battery.
Fully illuminated 6-inch red EXIT characters with a 3/4-inch stroke and field-selectable directional chevrons.
Rugged, injection-molded UL 94 5VA flame-retardant, high-temperature thermoplastic housing in white.

Specifications

Model: VLED-U-WH-EL90L-G2
Input: 120/277VAC, 60Hz; rated input power: 2.8W; input current: 30mA.
Operating temperature: 50°F to 104°F (10°C to 40°C).
UL 924 Listed for Damp Locations; CEC compliant, per manufacturer.
G2 protections include brownout, low-voltage, overload and short-circuit disconnect, with solid-state transfer.
Mounting: ceiling or wall; canopy included.
This configuration does not include the HO high-output or R remote-capability options. Accessories are ordered separately.

Warranty

Five-year warranty against component manufacturing defects, with a separate five-year prorated battery warranty, subject to the manufacturer's terms and exclusions.

Specifications sourced from the manufacturer's VLED-EL90L Series specification sheet, document 10800394 Rev 4. Installation must follow Barron Lighting Group instructions.
