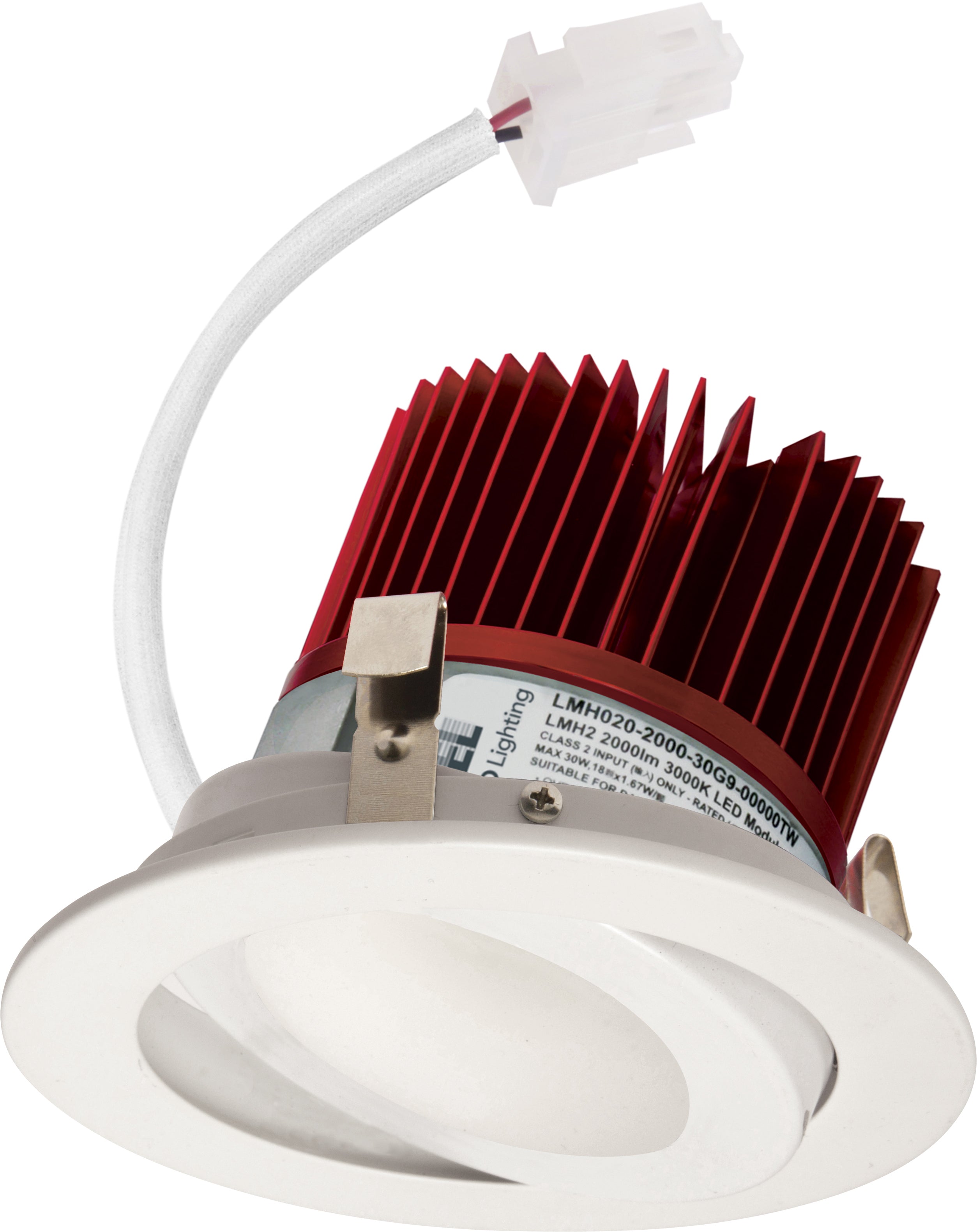

Elco 4 Inch LED Light Engine Retrofit with Adjustable White Trim - Dim to Warm - Gen 2

Elco 4 Inch LED Light Engine Retrofit with Adjustable White Trim - Dim to Warm - Gen 2

Brand: Elco Lighting
Item number: E418C-16-SD-W-2-F
Wattage: 18 Watt
Lumens: 1600
Color Temperature: 3000-1800 Kelvin
Bulb Color: Warm White
CRI: 93
Beam Angle: 38 degree

See More Spec

$145.00

BUY BULK & SAVE!

Model: E418C-16-SD-W-2-F

4 inch LED Light Engine with Adjustable White Trim - 18 Watt - Sunset (3000 to 1800 Kelvin Dim to Warm) - 1600 Lumen - 38 Degree Beam Angle +93CRI

High efficacy LED module.
Triac/ELV/0-10V dimming.
Must be used with ELCO 4" Cedar™ System Housings.
Frosted acrylic module lens for even lumen distribution.
Life span of 50,000 hours L70 based on LM80 standardized test results
USA designed and assembled.
Limited 5 year warranty.
2 at the end of the item number denotes Generation 2. Please note Gen 2 and Gen 1 are not cross compatible.

Optics: Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED technology.

Trim Construction: Reflector is two piece trim for maximum color versatility. Design allows for minimal glare and a strong glare cut-off. Trim is constructed of metal for lasting durability.

Installation: Must be installed on a Cedar™ System housing with compatible lumen rating. Frames are available for New Construction and Remodel as IC or non-IC.

LED Technology:

Extremely accurate Color Rendering Index of 93+.
Efficacy of 97 lumens per watt.
Superior Thermal Management by utilizing ELCO Red heat sink.
Instant On to Full Brightness technology, No LED pixilation.

Sunset: Sunset color temperature is our dim-to-warm LED technology that allows the color temperature to become warmer as the product is dimmed. SUNSET items start at 3000K and go as low as 1800K when dimmed.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Elco Lighting
Item number E418C-16-SD-W-2-F
Warranty 5 Year
Fixture Type Downlight Retrofit

Electrical

Voltage 120 Volt
Wattage 18 Watt
Dimmable Warm Dim

Size & Weight / Finish

Height 4.56 Inch
Weight 1 lb
Downlight Size 4 Inch
Diameter 5 Inch
Finish White
Trim Finish White
Fixture Color Family White
Material Metal

Light Output & Performance

Color Temperature 3000-1800 Kelvin
Bulb Color Warm White
Lumens 1600
CRI 93
Beam Angle 38 degree
Average Hours 50000

Certification

Wireless Connection

Type

Downlight Type Eyeball Gimbal
Lamp Type Integrated LED
Installation Type Clip on/No Can
Downlight Shape Round
Mount Type Recessed

Included

Suitable

Damp Location Yes

Warranty

Manufacturer Warranty Information

Elco 4 Inch LED Light Engine Retrofit with Adjustable White Trim - Dim to Warm - Gen 2 provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
