Product Description

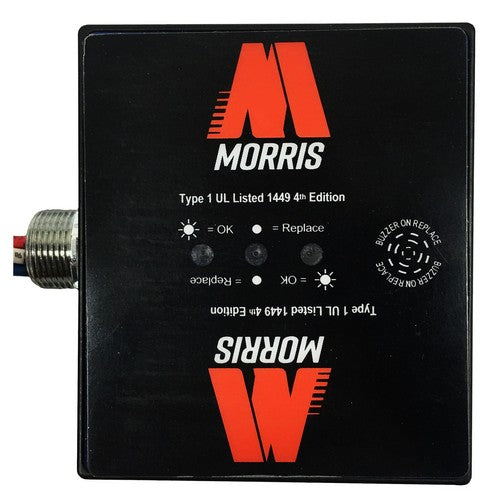

Our Lightning Arrestor Surge Protector protects numerous home and office applications.
- Installs at electrical disconnect or panel to protect Pumps, Motors, HVAC Condensers & Incoming Utility Power for Residential & Light Commercial Applications
- Hardwire Parallel Connection
- Unlimited (Parallel Installation) Continuous Current
- Hardwire parallel connection
- Response Time: <1 nSec component level
- Automatic Reset to Protect against Multiple Surge Events
- Surge Current Rating: 75,000A
- Short Circuit Current Rating: 10,000A
- MCOV: 130 VAC (L - G), 260 VAC (L - L)
- 940 Joules
- AC protection Modes: 900V L - L & 500V L - G
- Protection Type: SPD Type 2
- Operating Frequency: 0 - 400 Hz
- Lightning Surge Arrestor has Black high impact plastic housing
- Housing size: 3” x 2.25” x .75”
- Indicator light for surge protection, grounding and power status
- cULus Listed
- UL 1449, 3rd Edition; ANSI/IEEE C62.11
Full Specs
- Brand Morris Products
- Item number 89122
- UPC 601986891226
- Voltage 277/480 Volt
