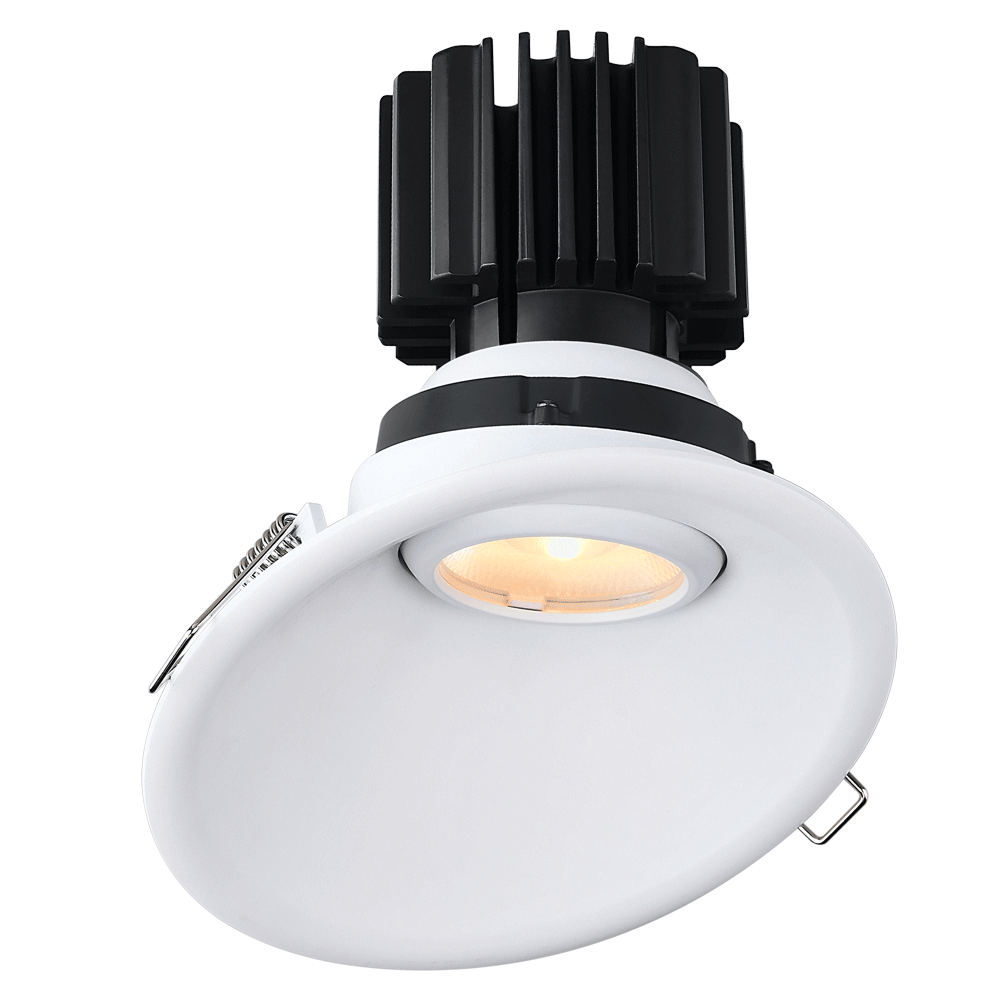

Tangra 4" Gimbal Round Sloped Thin White Trim Lens White 24° 5CCT CRI98 with 120V Commercial Driver

Brand: Lotus LED Lights
Item number: L3G-RST-WH-LW24-5C98
Trim Type: Thin White Trim
Driver: 120V Triac Dimmable Commercial
Color Temperature: 2700/3000/3500/4000/5000 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Lens White
CRI: 98

See More Spec

$131.60

BUY BULK & SAVE!

Model: L3G-RST-WH-LW24-5C98

The Tangra 4" Gimbal Round Sloped Thin Downlight with 120V Commercial Driver is engineered for demanding environments where performance, reliability, and flexibility matter.

Designed for sloped ceilings and complex layouts, this fixture delivers precise, adjustable lighting with a clean architectural finish. The integrated 120V commercial-grade driver ensures consistent output, long-term durability, and compatibility with standard commercial electrical systems — making it ideal for professional installations.

The adjustable gimbal mechanism allows for accurate light positioning, perfect for highlighting displays, work areas, or architectural features in retail, office, and hospitality settings.

Built to meet the needs of commercial spaces:

Integrated 120V commercial driver for dependable, high-performance operation
Ultra-thin housing for installation in tight plenum spaces
Adjustable gimbal design for targeted, directional lighting
Modern round trim for a clean, professional appearance

Ideal for commercial projects, tenant improvements, and high-traffic environments, the Tangra 4" Gimbal Downlight provides reliable illumination with the flexibility and durability professionals expect.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3G-RST-WH-LW24-5C98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 4 Inch
Lens/Glass Color Lens White

Light Output & Performance

Color Temperature 2700/3000/3500/4000/5000 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 98
Beam Angle 24 Degree
Trim Type Thin White Trim
Projected Life 70% Light Output at 50000 Hours
Applications 30° Angled Trim for Sloped Ceilings 5° to 55° & Wall Washing

Certification

Certifications c ETL us/ FCC
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Included

Driver 120V Triac Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 4" Gimbal Round Sloped Thin White Trim Lens White 24° 5CCT CRI98 with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
