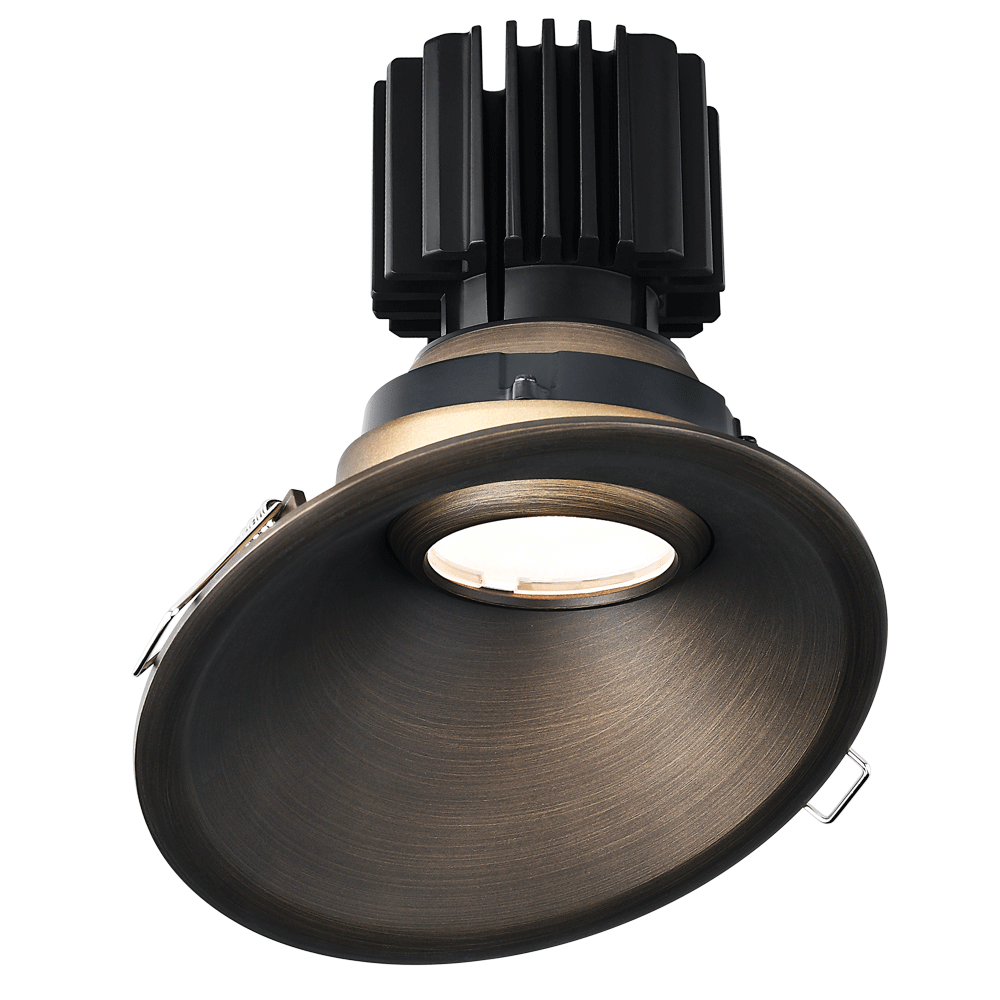

Tangra 4" Gimbal Round Sloped Thin Bronze Trim Lens Black 24° DTW 30K to 18K CRI95 with 120-347V 0-10V Dimmable Commercial Driver

  • Brand: Lotus LED Lights
  • Item number: L3G-RST-BR-LB24-1895
  • Trim Type: Thin Bronze Trim
  • Driver: 120-347V 0-10V Dimmable Commercial
  • Color Temperature: 3000 Kelvin to 1800 Kelvin
  • Bulb Color: CCT Switchable
  • Lens/Glass Color: Lens Black
  • CRI: 95
See More Spec
  • $131.60


  BUY BULK & SAVE!

Model: L3G-RST-BR-LB24-1895

The Tangra 4" Gimbal Round Sloped Thin Downlight with 120–347V 0–10V Dimmable Commercial Driver is engineered for high-performance lighting in demanding commercial environments.

Built for flexibility across a wide range of applications, this fixture supports 120–347V input, making it ideal for retail, office, hospitality, and multi-unit projects. The integrated 0–10V dimmable commercial driver delivers smooth, consistent light control, allowing for precise brightness adjustments without flicker — exactly what professional spaces require.

Its adjustable gimbal design is perfect for sloped ceilings and complex layouts, giving you the ability to direct light where it matters most — from highlighting merchandise and architectural features to improving overall workspace visibility.

Designed to meet commercial expectations:

120–347V wide voltage compatibility for versatile installations
0–10V dimmable commercial driver for reliable, scalable lighting control
Ultra-thin housing fits easily in tight plenum spaces
Adjustable gimbal for targeted, directional illumination
Clean, modern round trim for a polished architectural finish

Ideal for commercial builds, tenant improvements, and professional lighting designs, the Tangra 4" Gimbal Downlight delivers the performance, control, and durability needed to get the job done right.

Specification Document

Product Identity
  • Brand Lotus LED Lights
  • Item number L3G-RST-BR-LB24-1895
  • Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years
Electrical
  • Voltage 120-347 Volt
  • Driver 120-347V 0-10V Dimmable Commercial
  • Power 11W / 15W user selectable with Lotus Tangra drivers
  • Fixture input 20-40V DC Max 350 mA Constant Current
  • Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
  • J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
  • Temperature -40°F (-40°C) to +113°F (+45°C)
Size & Weight / Finish
  • Downlight Size 4 Inch
  • Lens/Glass Color Lens Black
Light Output & Performance
  • Color Temperature 3000 Kelvin to 1800 Kelvin
  • Bulb Color CCT Switchable
  • Lumen up to 1600 lm at 3000K CRI95
  • CRI 95
  • Beam Angle 24 Degree
  • Trim Type Thin Bronze Trim
  • Projected Life 70% Light Output at 50000 Hours
  • Applications 30° Angled Trim for Sloped Ceilings 5° to 55° & Wall Washing
Certification
  • Certifications c ETL us/ FCC
  • Wet Location Yes
  • Safety Rating Air Tight
  • Compliance FCC
Wireless Connection
Type
Included
  • Driver 120-347V 0-10V Dimmable Commercial
Suitable

Warranty

Manufacturer Warranty Information

Tangra 4" Gimbal Round Sloped Thin Bronze Trim Lens Black 24° DTW 30K to 18K CRI95 with 120-347V 0-10V Dimmable Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
