Product Description

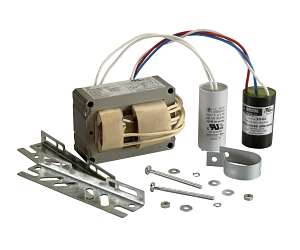

The 70W Metal Halide Quad-Tap Ballast Kit is engineered for reliable performance with 70W MH lamps (ANSI M98/M143). Its quad-tap design supports 120V, 208V, 240V, and 277V systems, making installation simple and versatile. Built with a durable HX circuit, high-temperature 200°C insulation, and a robust 8µF capacitor, this kit ensures stable lamp operation and long service life—ideal for commercial, industrial, and outdoor lighting applications.
Specifications
-
Lamp Type: 70W Metal Halide (M98 / M143)
-
ANSI Designation: M98 or M143
-
Input Voltage: 120 / 208 / 240 / 277V (Quad Tap)
-
Circuit Type: HX
-
Frequency: 60 Hz
-
Regulation: 5% Line Volts / 10% Lamp Wattage
-
Recommended Fuse: 4A / 3A / 3A / 2A
-
Insulation Class: 200°C
-
Capacitor Value: 8 µF
-
Capacitor Voltage Rating: 280V
-
Capacitor Temperature Rating: 105°C
- Brand Keystone
- Item number MH-70X-Q-KIT 3/1
- UPC 890949011638
- Product Type Ballasts
- Wattage 70 Watt
- Input Voltage (120/208/240/277)
- Width 1.46 Inch
- Height 3.94 Inch
- Length 2.81 Inch
- Ballast Type Magnetic Metal Halide
- Power Factor High
- Input Voltage (120/208/240/277)
- Warranty 2 Years
