Product Description

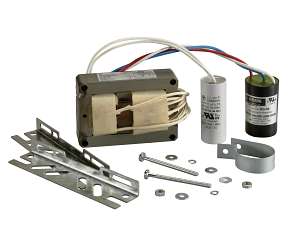

The 50W Metal Halide Quad-Tap Ballast Kit is designed for reliable operation of 50W MH lamps (ANSI M110/M148). Featuring a quad-tap input for universal compatibility (120/208/240/277V) and a durable HX circuit design, this kit provides stable lamp performance, low regulation, and long service life. Built with high-temperature 200°C insulation and a robust 280V capacitor, it’s ideal for commercial, industrial, and security lighting applications.
Specifications
-
Lamp Type: 50W Metal Halide (M110/M148)
-
ANSI Designation: M110 / M148
-
Input Voltage: 120 / 208 / 240 / 277V (Quad Tap)
-
Circuit Type: HX
-
Line Regulation: 5% Line Volts / 10% Lamp Wattage
-
Insulation Class: 200°C
-
Capacitor Voltage Rating: 280V
-
Capacitor Temperature Rating: 100°C
- Brand Keystone
- Item number MH-50X-Q-KIT /A
- UPC 890949007396
- Product Type Ballasts
- Wattage 50 Watt
- Input Voltage Quad Tap (120/208/240/277)
- Width 1.04 Inch
- Height 3.94 Inch
- Length 2.81 Inch
- Ballast Type Magnetic Metal Halide
- Power Factor High
- Input Voltage Quad Tap (120/208/240/277)
- Warranty 2 Years
