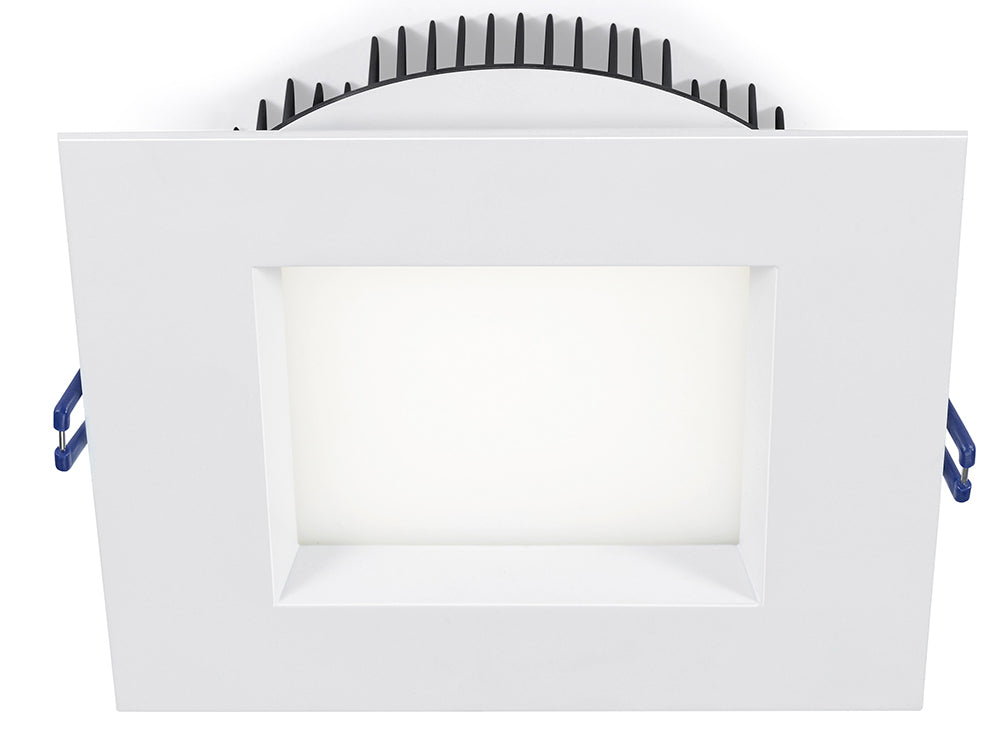

Lotus LED Lights LL6SR-5CCT-WH - 6 inch Square Regressed Open Plenum LED Downlight - 18 Watt - 5CCT Selectable - White Trim

Brand: Lotus LED Lights
Item number: LL6SR-5CCT-WH
UPC: 736832279924
Product Type: LED Downlights
Halogen Equivalent: 100 Watt
Wattage: 18 Watt
Lumens: 1030-1190
Color Temperature: 2700/3000/3500/4000/5000 Kelvin

See More Spec

$74.20

BUY BULK & SAVE!

Model: LL6SR-5CCT-WH

6 inch Square Regressed Open Plenum LED Downlight

18 Watt - 1030-1190 Lumens - 2700/3000/3500/4000/5000 Kelvin - 5CCT Selectable - 90 Deg.Beam Spread - White Trim - 90+ CRI - LL6SR-5CCT-WH

Commercial Grade Quality With Architectural Design. Open Plenum Rated

Type IC Rated – Approved for Direct Contact with Insulation
Air-Tight, Wet Location, Insulated and Non Insulated Ceilings
Light colors: 2700K, 3000K, 4000K & 5CCT user selectable
Superb Light Quality with CRI 90+
Triac Dimmable with most CL dimmers 120V input
0-10V Dimmable Option 120V – 347V input
External Driver Inside Connection Box – No Junction Box Needed
Warranty: 10 Year on Residential, 5 Year on Commercial Installations
cULus Listed, Energy Star and T24 Certified

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number LL6SR-5CCT-WH
UPC 736832279924
Product Type LED Downlights
Warranty Residential - 10 Year / Commercial - 5 Year
Fixture Type Downlight

Electrical

Voltage 120 Volt
Wattage 18 Watt
Halogen Equivalent 100 Watt
Dimmable Yes

Size & Weight / Finish

Width 7 Inch
Height 2.25 Inch
Length 7 Inch
Weight 1 lb
Downlight Size 5/6 Inch
Finish White
Trim Finish White
Fixture Color Family White

Light Output & Performance

Color Temperature 2700/3000/3500/4000/5000 Kelvin
Bulb Color CCT Switchable
Lumens 1030-1190
CRI 90+
Beam Angle 90 degree
Average Hours 50000

Certification

IP Code IP54
Wet Location Yes
Safety Rating Air Tight
Compliance Title 24
CUL Yes
IC Rated Yes
Energy Star Yes

Wireless Connection

Type

Downlight Type Regressed
Lamp Type Integrated LED
Installation Type Clip On/No Can
Downlight Shape Square
Mount Type Recessed

Included

Suitable

Warranty

Manufacturer Warranty Information

Lotus LED Lights LL6SR-5CCT-WH - 6 inch Square Regressed Open Plenum LED Downlight - 18 Watt - 5CCT Selectable - White Trim provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
